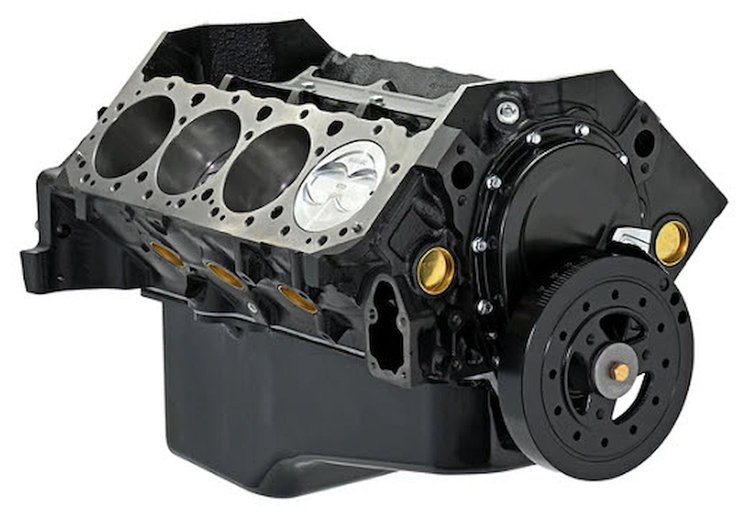

SBC406SB236244SUB Small Block Chevy 406 ci. Short Block w/540 HP Extreme Roller Cam [Sealed Up]
InfoVehicle Info Needed
SMEDING PERFORMANCEPART NUMBER: 039-406SB236244S

SBC406SB236244SUB Small Block Chevy 406 ci. Short Block w/540 HP Extreme Roller Cam [Sealed Up]

$5,77500
Truck Freight
ShippingShips on 12/07/2026
Lowest PriceLowest Price Guarantee

Items You Need

1-Ton Automotive Shop Crane [Boom Operating Range: 34 in. to 45 in.]

JEGS

1-Ton Automotive Shop Crane [Boom Operating Range: 34 in. to 45 in.]

Part Number : 555-81044K
$23698
Air Cleaner with Logo 14 in. x 3 in. [Chrome-Plated]

JEGS

Air Cleaner with Logo 14 in. x 3 in. [Chrome-Plated]

Part Number : 555-50022
$5299$58.99
You Save$6.00
Premium High-Flow Short-Style Aluminum Water Pump Fits Select 1955-1972 Small Block Chevy 265-400 V8 [Natural]

JEGS

Premium High-Flow Short-Style Aluminum Water Pump Fits Select 1955-1972 Small Block Chevy 265-400 V8 [Natural]

Part Number : 555-51060
$14999$164.99
You Save$15.00
Harmonic Balancer Bolt for Small Block Chevy 283-400 Engines [6-Point Hex Head]

JEGS

Harmonic Balancer Bolt for Small Block Chevy 283-400 Engines [6-Point Hex Head]

Part Number : 555-82800
$699$7.99
You Save$1.00

Short Blocks
Small Block Chevy 406 ci. Short Block
  • Block: 4-Bolt Main w/1-Piece Rear Main Seal
  • Crankshaft: 4340 Forged Steel 3.800 in. Stroke
  • Connecting Rods: 5140 Forged Steel 5.7 in. I-Beam
  • Pistons: Forged Aluminum
  • Camshaft: Hydraulic Roller

    Smeding SBC406SB236244SUB Small Block Chevy 406 ci. Short Block:

    • Block:
      • 4.125 in. Bore
      • Heavy-Duty 4-Bolt Mains
      • 9.025 in. Deck Height
      • 1-Piece Rear Main Seal
      • Machined for OE Hydraulic Roller
    • Crankshaft:
      • 4340 Forged Steel
      • 3.800 in. Stroke
      • Internal Front / External Rear Balance
    • Connecting Rods:
      • 5140 Forged Steel I-Beam
      • 5.700 in. Length
      • 3/8 in. Bolts
      • Floating Wrist Pins
      • 12pt 3/8 in. SP8740 Fasteners
    • Pistons:
      • 2618 Forged Aluminum
      • 18 cc Dish
      • Coated Skirts
    • Rings:
      • Stainless Steel Top
      • Napier 2nd
      • Low Tension Oil
      • 1.2 mm, 1.2 mm, 3.0 mm
    • Bearings:
      • King Bi-Metal
    • Cam Bearings:
      • Dura-Bond, Installed
    • Compression Ratio:
      • 10.0:1 w/64 cc Heads
      • 9.3:1 w/72 cc Heads
    • Camshaft:
      • Hydraulic Roller
      • 236 in. Intake / 244 in. Exhaust Duration @ .050 in.
      • .544 in. Intake / .543 in. Exhaust Lift
      • 110 LSA (Lobe Separation Angle)
    • Lifters:
      • Hydraulic Roller, OE Roller Design
    • Timing Set:
      • True Roller, OE Roller Design
    • Oil System:
      • Melling M55 Standard Volume Oil Pump
      • Black 6 qt. Steel Oil Pan
    • Front Drive Components:
      • Black Steel Timing Cover
      • 8 in. Harmonic Balancer
    • Brass Freeze Plugs – Installed
    • Oil Plugs- Installed
    • Dowel Pins – Installed

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

  • Part TypeEngine Short Block
    BrandSMEDING PERFORMANCE
    Package Height25.4
    Package Width27.0
    Package Length31.7
    Weight175.0 PG
    Part CategoryPerformance Parts
    Engine TypeHigh-Performance Crate Engine
    Engine Block MaterialCast Iron
    Engine Assembly StyleShort Block
    Part FitmentSemi Universal
    Engine Displacement406 ci.
    Engine Make/SizeChevy Small Block
    Camshaft StyleHydraulic Roller
    Vendor Part NumberSBC406SB236244SUB
    Package Qty1
    Package TypeEA
