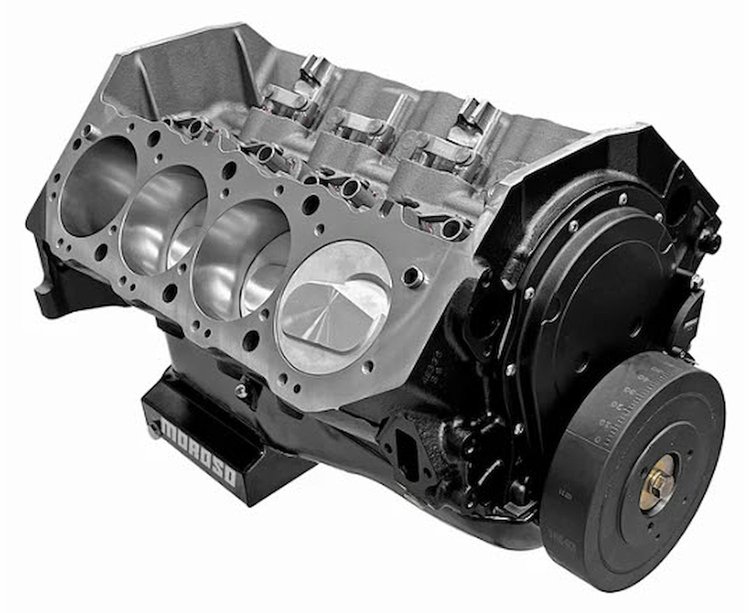

BBC540SB239249SUB Big Block Chevy 540 ci. Short Block w/640 HP Roller Cam [Sealed Up]
InfoVehicle Info Needed
SMEDING PERFORMANCEPART NUMBER: 039-540SB239249S

BBC540SB239249SUB Big Block Chevy 540 ci. Short Block w/640 HP Roller Cam [Sealed Up]

$9,90000
Truck Freight
ShippingShips on 12/31/2026
Lowest PriceLowest Price Guarantee

Items You Need

1-Ton Automotive Shop Crane [Boom Operating Range: 34 in. to 45 in.]

JEGS

1-Ton Automotive Shop Crane [Boom Operating Range: 34 in. to 45 in.]

Part Number : 555-81044K
$23698
Break-In Oil 10W30 6 Quarts

JEGS

Break-In Oil 10W30 6 Quarts

Part Number : 555-28067K
$5394
Break-In Oil 20W50 6 Quarts

JEGS

Break-In Oil 20W50 6 Quarts

Part Number : 555-28068K
$7794
Oil Pump Priming Tool for Small & Big Block Chevy V8

JEGS

Oil Pump Priming Tool for Small & Big Block Chevy V8

Part Number : 555-23640
$2299$24.79
You Save$1.80

Short Blocks
Big Block Chevy 540 ci. Short Block
  • Block: Dart Big M Sportsman
  • Crankshaft: 4340 Forged Steel 4.250 in. Stroke
  • Connecting Rods: 4340 Forged Steel 6.385 in. H-Beam
  • Pistons: Forged Aluminum
  • Camshaft: Hydraulic Roller

    Smeding BBC540SB239249SUB Big Block Chevy 540 ci. Short Block:

    • Block:
      • 4.500 in. Bore
      • 9.800 in. Deck Height
      • 4-Bolt Billet Steel Mains with ARP Fasteners
    • Crankshaft:
      • 4340 Forged Steel
      • 4.250 in. Stroke
      • Internal Balance
    • Connecting Rods:
      • 4340 Forged Steel H-Beam
      • 6.385 in. Length
      • 7/16 in. SP8740 12pt Fasteners
      • Floating Wrist Pins
    • Pistons:
      • 4032 Forged Aluminum
      • 10 cc Dome
      • Coated Skirts
    • Rings:
      • Plasma-Moly Top
      • Low Tension Oil
      • 1/16 in. x 1/16 in. x 3/16 in.
    • Camshaft:
      • Hydraulic Roller
      • 239° Intake / 249° Exhaust Duration @ .050 in.
      • .614 in. Intake / .614 in. Exhaust Lift
      • 112° Lobe Separation Angle (LSA)
      • Link-Bar Lifters
    • Timing Set:
      • Single Roller
    • Timing Cover:
      • Cast Aluminum
    • Oil Pump:
      • Melling M77 High Volume
    • Oil Pan:
      • Moroso Black Steel
      • 7 qt. Capacity
    • Harmonic Balancer:
      • Included
    • Bearings:
      • King Tri-Metal
    • Cam Bearings:
      • Dura-Bond, Installed
    • Compression Ratio:
      • Varies by Cylinder Head Selection
    • Brass Freeze Plugs – Installed
    • Oil Plugs- Installed
    • Dowel Pins – Installed

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    • Big Cubic Inch Crate Engines

      Smeding Performance Big Block Chevy 540 ci. Crate Engines provide big, reliable power from big cubic inches.

    Part TypeEngine Short Block
    Product LineSmeding Performance Big Block Chevy 540 ci. Crate Engines
    BrandSMEDING PERFORMANCE
    Package Height26.0
    Package Width26.0
    Package Length29.0
    Weight417.0 PG
    Part CategoryPerformance Parts
    Engine TypeHigh-Performance Crate Engine
    Engine Block MaterialCast Iron
    Engine Assembly StyleShort Block
    Part FitmentSemi Universal
    Engine Displacement540 ci.
    Engine Make/SizeChevy Big Block
    Camshaft StyleHydraulic Roller
    Vendor Part NumberBBC540SB239249SUB
    Package Qty1
    Package TypeEA
