Transfer Case Split Ring Retainer [230 Series, 1.180 in. Shaft]
Product Discontinued
SONNAXPART NUMBER: 852-100420-01K

Transfer Case Split Ring Retainer [230 Series, 1.180 in. Shaft]

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

    Transfer Case Split Ring Retainer
  • 230 Series w/ 1.180 in. Shaft Diameter

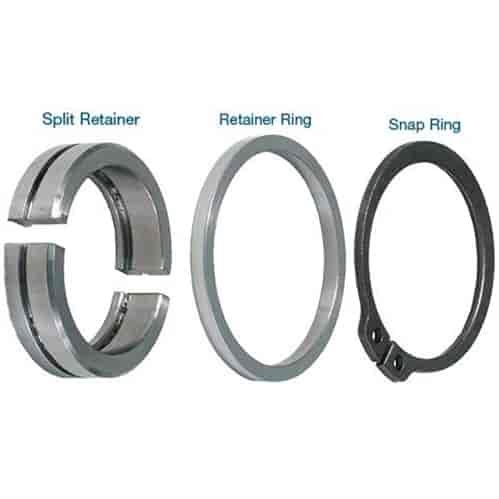

  • Split Retainer, Retainer Ring & Snap Ring Included

    Sonnax offers split ring retainers as an upgrade to the OE open-end style retainer that commonly breaks. The OE snap ring directly behind the rear output shaft bearing fails from fatigue cracks caused by the on/off loading of the snap ring. The open-end-style snap rings cannot withstand the loads from the forward force of the driveshaft. The driveshaft spline is designed to slide on the output shaft spline, but spline lock causes the drive shaft to directly load the OE snap ring. When the rear suspension moves up and down, the drive shaft pounds this snap ring until it breaks.

Part TypeRocker Arm Retainer
Product LineSonnax Transfer Case Split Ring Retainer
BrandSONNAX
Package Height0.5
Package Width9.0
Package Length9.2
Weight0.17 PG
Part CategoryReplacement Parts
Package Qty1
Package TypeEA
