Transfer Case Split Ring Retainer
InfoVehicle Info Needed
SONNAXPART NUMBER: 852-100420-02K

Transfer Case Split Ring Retainer

$5103
1 left in stock
ShippingShips on Nov 02, 2026
Lowest PriceLowest Price Guarantee

    Transfer Case Split Ring Retainer
  • Fits 230 & 240 series with 1.375" Shaft Diameter
  • High-Strength Chromoly Steel that is Through-Hardened

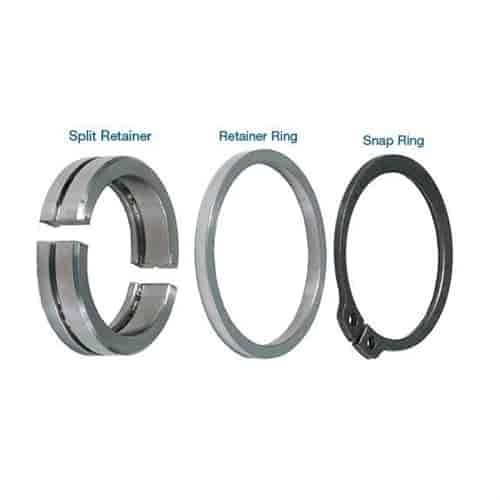

  • Split Retainer, Retainer Ring & Snap Ring Included

    Sonnax offers split ring retainers as an upgrade to the OE open-end style retainer that commonly breaks. The OE snap ring directly behind the rear output shaft bearing fails from fatigue cracks caused by the on/off loading of the snap ring. The open-end-style snap rings cannot withstand the loads from the forward force of the driveshaft. The driveshaft spline is designed to slide on the output shaft spline, but spline lock causes the drive shaft to directly load the OE snap ring. When the rear suspension moves up and down, the drive shaft pounds this snap ring until it breaks.

Part TypeTransfer Case Bearing Retainer Snap Ring
Product LineSonnax Transfer Case Split Ring Retainer
BrandSONNAX
Package Height1.1
Package Width3.6
Package Length4.9
Weight0.2 PG
Part CategoryReplacement Parts
Vendor Part Number100420-02K
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
