Sonnax 105740-13K Features:

The primary design function of the OE end plug is to prevent critical pressure loss by capping the bore. OE end plugs rely entirely on small clearances between the end plug and bore to confine hydraulic fluid under fluctuating pressure. End plugs are often tasked with a secondary role functioning as a spring stop or valve stop.

The repetitious and varying actions of fluid pressure, spring motion and valve impact cause wear at the end plug and bore mating surface and can distort the shape of the end plug. High pressure fluid leaking through the clearance gap can, with time, erode the surface material of both end plug and bore. Eventually the cumulative loss of hydraulic integrity leads to low pressure in the TCC signal and LP signal circuits. Typical complaints include TCC apply and release concerns, TCC slip codes, low line pressure, and various shift concerns.

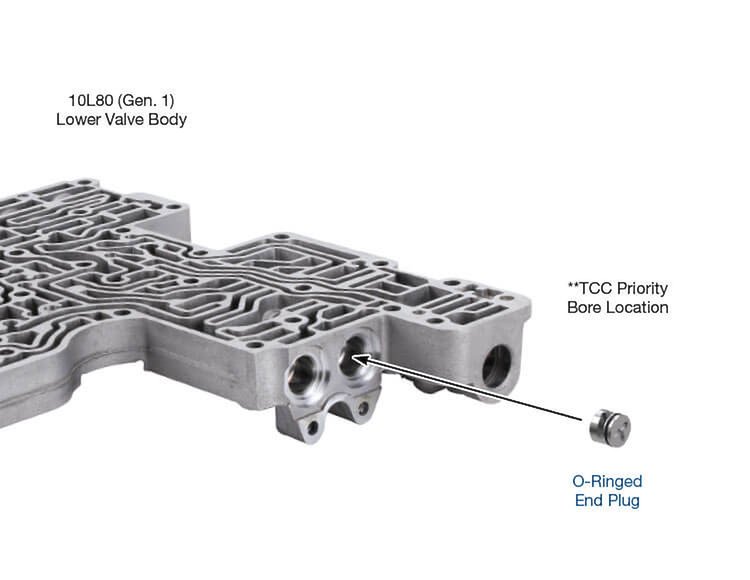

Sonnax O-ringed end plug kit 105740-13K which includes the main pressure regulator valve plug and the TCC priority bore plug replaces worn, distorted or eroded end plugs in listed Ford and GM units. Sonnax end plugs have small clearances to mechanically block the bore and increase effectiveness. The O-ring seal reduces leakage further by blocking off worn areas of the bore which the new end plug alone could not seal.
