This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

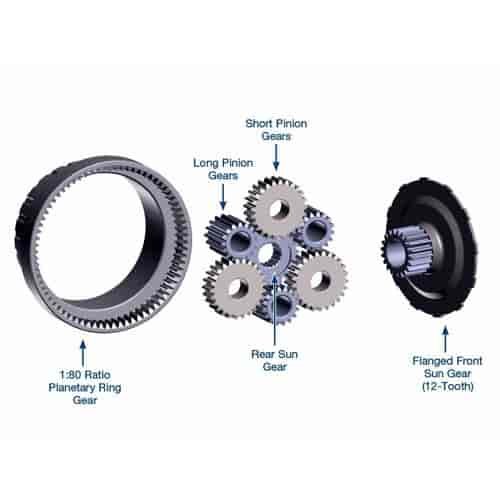

- 1.80 Ratio Planetary Ring Gear
- Flanged Front Sun Gear 12-Tooth
- Rear Sun Gear
- Long Pinion Gears (3)
- Short Pinion Gears (3)
- Ratio: 1.80
- Flange Tooth Count: 12
- Gear Process Level: Extreme
- Cryogenic tempering to ultra-low temperatures (-350°F) for an even denser, more uniform gear with a tough and wear-resistant structure.
- Shot peening for increased gear resistance to fatigue failure, cracking or galling.
- Super-finish to reduce friction, vibration, noise and wear on the gear, potentially tripling the life of the part.
- Gear Sets
Sonnax planetary gears are a big step up from standard case-hardened and tempered gears. Each gear set includes a flanged sun gear and a ring gear. The flange is machined from a billet, not a stamped piece. It is broached and matched to the sun gear for a precise press fit that does not require welding.
Planetary AssembliesPlanetary assemblies come in various configurations for different build requirements. The output shaft is available in the OE-length or short length and has a drum flange tooth profile which is 12-tooth (OE) or 24-tooth (fits Sonnax's 10-clutch drum). Units are fully assembled with a rear sun gear bearing upgrade and OE or steel-backed, PTFE-coated thrust washers.
