Powerglide Extreme Planetary Assembly Kit 1.65 Ratio

Name: Powerglide Extreme Planetary Assembly Kit 1.65 Ratio
Brand: SONNAX
SKU: 852-28165G-06
Price: 4165.34 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Planetary Assemblies

Powerglide Extreme Planetary Assembly Kit

1.65 Ratio

24 Tooth Drum Flange

OE Shaft Length

Ratio: 1.65
Flange Tooth Count: 24
Gear Process Level: Extreme
Shaft Length Option: OE
Material: 300M Rolled Spline Shaft

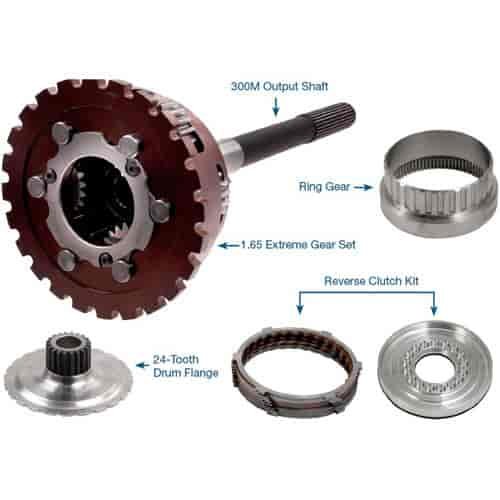

Sonnax 1.65 ratio Extreme planetary assembly kit 28165G-06 is based off the innovative 1.58 ratio architecture fitted with 1.80 style 12DP gears. This is the lowest numerical ratio 12DP gear set for the Powerglide that does not rely on troublesome stepped or timed pinion gears.

Sonnax Extreme series are the best quality Powerglide planetary assemblies for the most demanding applications. Rated above 1,500 horsepower, Extreme assemblies come with:

Premium, Advanced Process 9310 sun and pinion gears. The front and rear sun gears undergo an additional Dry Film Lubricant (DFL) treatment to reduce spalling and improve longevity.
300M rolled spline output shafts in OE or short lengths
High strength steel-backed, PTFE thrust washers
Maximum duty ring gear
24-Tooth billet drum flange designed to work exclusively with the Sonnax reverse clutch kit
The gears and shafts in Extreme series gear sets are covered by a two-year warranty.

NOTE: Requires one of the following Sonnax 24-tooth high gear clutch drums 28756-01, 28756-08, 28756-01K, 28756-08, 28756-15K or 28756-16K.

Part TypeAutomatic Transmission Planetary Gear

BrandSONNAX

Package Height9.4

Package Width9.7

Package Length20.7

Weight27.56 PG

Part CategoryReplacement Parts

Part FitmentSemi Universal

Vendor Part Number28165G-06

Package Qty1

Package TypeEA
