Vehicle Info NeededSONNAXPART NUMBER: 852-28169G-06
Powerglide Extreme Planetary Assembly Kit 1.69 Ratio
$2,66804
Ships on 09/10/2026
Lowest Price GuaranteePlanetary Assemblies
Powerglide Extreme Planetary Assembly Kit1.69 Ratio 24 Tooth Drum Flange OE Shaft Length
Extreme planetary assemblies include Advanced Process sun gears and pinions made to the same exacting standards used on Formula 1, Nascar and other high-end professional racing circuits.
Advanced Process parts undergo an additional three-step process that allows for greater durability and higher levels of performance. These units are fully assembled and ready to install.

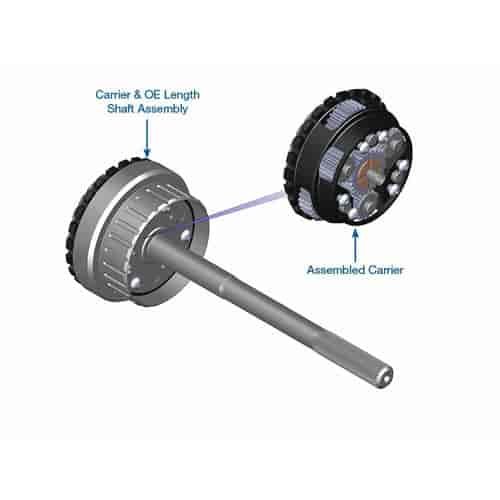

- Carrier Assembly
- Output Shaft (OE Length)
- 1:69 Gear Set (24-Tooth)
- Ratio: 1.69
- Flange Tooth Count: 24
- Gear Process Level: Extreme
- Material: HY-Tuf Rolled Spline
- Shaft Length Option: OE
Extreme planetary assemblies include Advanced Process sun gears and pinions made to the same exacting standards used on Formula 1, Nascar and other high-end professional racing circuits.
Advanced Process parts undergo an additional three-step process that allows for greater durability and higher levels of performance. These units are fully assembled and ready to install.
- Cryogenic tempering to ultra-low temperatures (-350?F) for an even denser, more uniform gear with a tough and wear-resistant structure.
- Shot peening for increased gear resistance to fatigue failure, cracking or galling.
- Super-finish to reduce friction, vibration, noise and wear on the gear, potentially tripling the life of the part.
- Gear Sets
Sonnax planetary gears are a big step up from standard case-hardened and tempered gears. Each gear set includes a flanged sun gear and a ring gear. The flange is machined from a billet, not a stamped piece. It is broached and matched to the sun gear for a precise press fit that does not require welding.
Planetary AssembliesPlanetary assemblies come in various configurations for different build requirements. The output shaft is available in the OE-length or short length and has a drum flange tooth profile which is 12-tooth (OE) or 24-tooth (fits Sonnax's 10-clutch drum). Units are fully assembled with a rear sun gear bearing upgrade and OE or steel-backed, PTFE-coated thrust washers.
Part TypeAutomatic Transmission Planetary Gear
Product LineSonnax Powerglide Planetary Gear Sets & Assemblies
BrandSONNAX
Package Height9.5
Package Width9.5
Package Length20.5
Weight22.79 PG
Part CategoryReplacement Parts
Part FitmentSemi Universal
Vendor Part Number28169G-06
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
