Smart-Tech Input Housing [GM 4L60E, 4L65E, 4L70E]
InfoVehicle Info Needed
SONNAXPART NUMBER: 852-77733-06KA

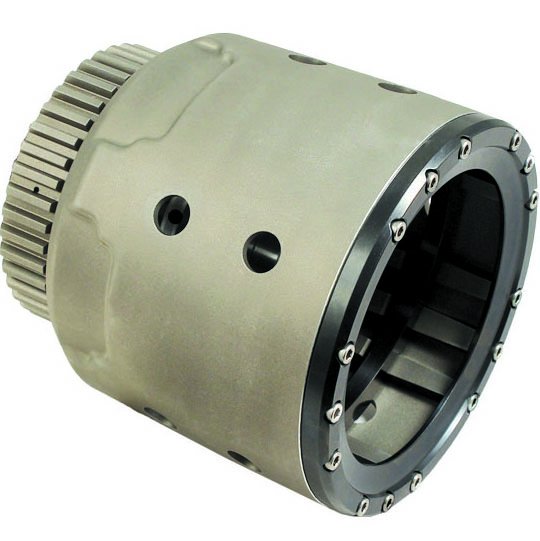

Smart-Tech Input Housing [GM 4L60E, 4L65E, 4L70E]

$90765
1 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

GM 700R4/4L60E
Smart-Tech Input Housing
  • GM 4L60E, 4L65E, 4L70E

    For strength and resistance to fracture, the Sonnax input housing kit  made of high strength steel that is specially heat-treated with a very hard outer layer with a more ductile inner core. The feed holes are chamfered to reduce stress and the shaft is further processed by shot peening and deep cryogenic treatment.

    Features

    • Increased 3-4 clutch capacity by a redesigned apply plate allows for thicker steels and clutch options for increased torque capacity
      • Can accept (8) .067 in. frictions with (7).095 in.steels or (9) .062 in. frictions with (8) .077 in. steels
    • Prevents 3-4 backing plate flex and distortion with zero-flex
    • Treated Housing Resistant to Fatigue Failure
    • Reinforced sleeve in steel input drum prevents breakage in shaft/spline area
    • Eliminates 3-4 retaining ring blow-out by riding the unit of the snap ring and using 15-bolts to secure the anchor plate

    Contents

    • Modified Input Housing
    • PTFE Impregnated Rear Stator Support Bushing
    • Overrun Piston Inner Seal
    • Overrun Piston
    • 3-4 Clutch Apply Plate
    • (10) 3-4 Clutch Return Springs
    • Overrun Piston Outer Seal
    • Bolt-on Anchor Plate
    • Overrun Piston Outer Seal
    • (15) Socket Head Cap Screws

    Note:

    • Requires '91-later 3-4 apply ring
    • Requires '97-later ring gear
    • Requires '97-later dual-cage return spring
    • Requires '87-later forward backing plate
    • Requires '97-later stamped steel forward piston
    • Cannot be used with aluminum forward piston or Sonnax billet forward piston 852-77764-01



    • Maximize Automatic Transmission Strength

      Input Housing Kits by Sonnax are built stronger for extending the reliability and durability of an automatic transmission. Engineered to allow more clutch packs for increased capacity while a stronger backing plate eliminates flexing to help protect clutch burnup. A reinforcement sleeve and treated housing will resist failure in stressed areas, all providing a more robust unit than OE for extended service.

    Part TypeAutomatic Transmission Input Clutch Housing
    Product LineSonnax Smart-Tech Input Housing Kits
    BrandSONNAX
    Package Height9.5
    Package Width9.6
    Package Length12.6
    Weight8.45 PG
    Part CategoryReplacement Parts
    Part FitmentSemi Universal
    Vendor Part Number77733-06KA
    Package Qty1
    Package TypeEA
