Vehicle Info NeededSONNAXPART NUMBER: 852-K36528R
"R" Ratio Servo Piston Kit C6 (Mid -68-Later)
$15941
2 left in stock
Ships Tomorrow
Lowest Price Guarantee"R" Ratio Servo Piston Kit
"R" Ratio Servo Piston KitC6 (Mid `68-Later)
Since its introduction in 1969 with the 428 SCJ, the R code servo has remained the trick piece for C6 builders needing additional band apply force. Sonnax R code servo kit K36528R for C6 (mid 68-later) units features a no-leak pin which uses one O-ring and one PTFE ring to eliminate back pressure and leakage due to worn case bores. A replacement seal kit K36528R-SK also is available.

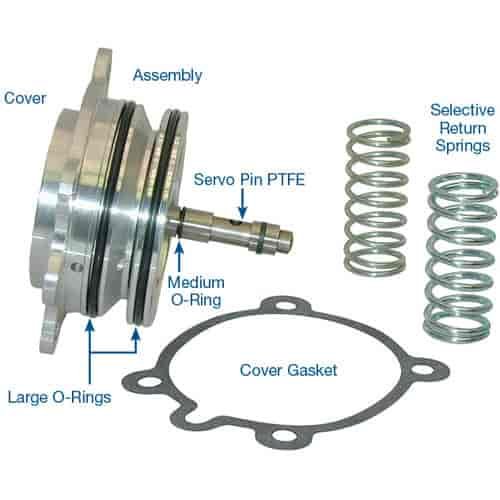

- Cover
- Assembly
- Pin O-Ring
- Pin PTFE Seal Ring
- Medium O-Ring
- Large O-rings (2)
- Cover Gasket
- Selective Return Springs (2)
Since its introduction in 1969 with the 428 SCJ, the R code servo has remained the trick piece for C6 builders needing additional band apply force. Sonnax R code servo kit K36528R for C6 (mid 68-later) units features a no-leak pin which uses one O-ring and one PTFE ring to eliminate back pressure and leakage due to worn case bores. A replacement seal kit K36528R-SK also is available.
- More than 9 square inches of apply surface for more band apply force
- No-leak servo pin design allows the servo piston to be used in worn bores
- Two selective return springs allow for tuning of shift quality
Part TypeAutomatic Transmission Servo Piston
BrandSONNAX
Package Height5.0
Package Width5.4
Package Length5.5
Weight1.77 PG
Part CategoryReplacement Parts
Part FitmentSemi Universal
Vendor Part NumberK36528R
Package Qty1
Package TypeEA
