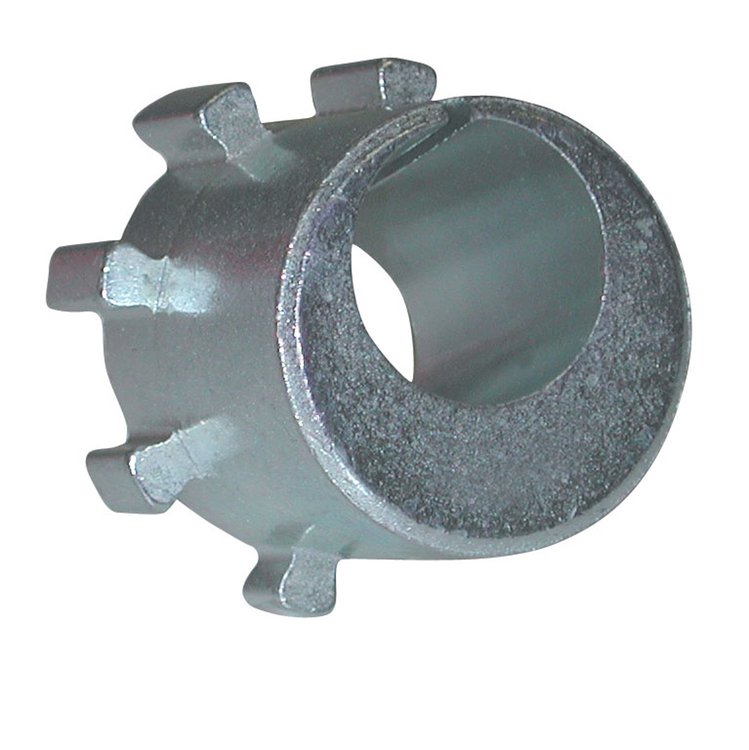

Vehicle Info Needed23113 2-3/4 Ford Cam/Cas Sleeve Ford Bronco 1980-1996, Ford F-150 1980-1996, Ford F-250 1980-1998, Ford F-250 HD 1997-1997,
Ships on 09/15/2026
Lowest Price GuaranteeSPC 23113 Features:
This sleeve will easily change Camber and/or Caster 2.75° for vehicles equipped with twin traction beam DANA 44 axles. Simply remove the tire, cotter pin and upper ball joint stud nut and break the taper free between the stud and sleeve. Using a sleeve puller, remove the existing sleeve and install a zero-degree sleeve (23109) to determine the required change, then install the correct degree sleeve. To split camber and caster adjustment, rotate sleeve 45°.
- Easily change caster / camber or both at the same time
- Clear Zinc coating for corrosion resistance
- Recommended Tools: 77880 - Sleeve Puller
- Front Adjustment Range: Camber/Caster ±2.75°
- Required: 1 per wheel
Change camber, caster or both at the same time with these sleeves. Simply remove the tire, cotter pin and upper ball joint stud nut and break the taper free between the stud and sleeve. Using a sleeve puller, remove the existing sleeve. Install zero degree sleeve p/n 827-23109 to determine the change needed, then install the correct sleeve. To adjust, the sleeve may be lifted and rotated 1/8 turn. 1 sleeve is required per wheel. Sold individually.
Applications:
- 1980 and up: F250/F350/E250/E350/E450/Full Size Bronco with Ball Joints
- 1980-96 F150/250 (L/D)
