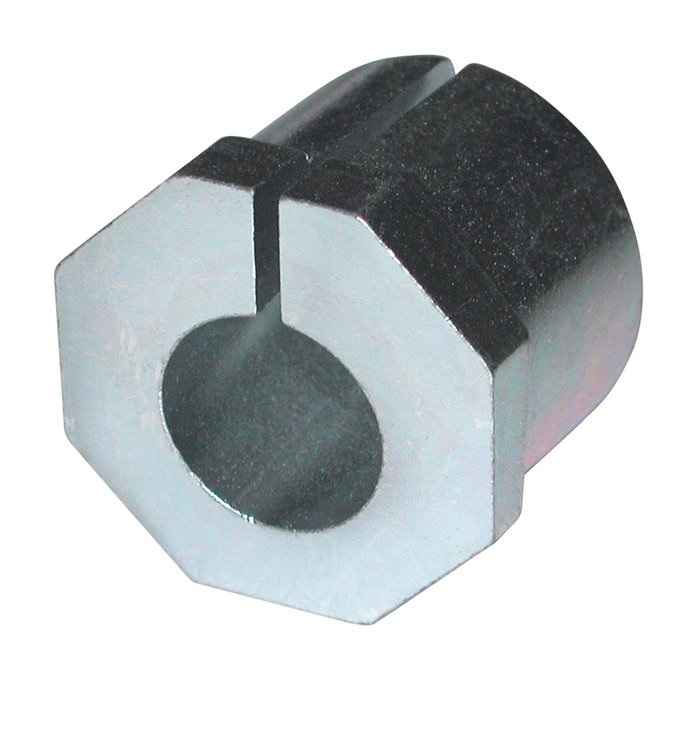

SPC 23130 Features:

Change camber and/or caster at the same time with these sleeves. Simply remove the tire, cotter pin and upper ball joint stud nut and break the taper free between the stud and sleeve. Using a sleeve puller, remove the existing sleeve. Install a zero-degree sleeve 23139 to determine the change needed, then install the correct sleeve. To split camber and caster adjustment, rotate sleeve 45°. Set 23130 contains 1 each: 23131, 23132, 23133, 23134, 23135, 23136, 23137, 23138, 23139

• Sleeve Kit for popular 4x4 applications
• Easily change caster / camber or both at the same time
• Clear Zinc coating for corrosion resistance
• Recommended Tools: 77880 - Sleeve Puller
• Front Adjustment Range: Camber/Caster ±0.25° to ±2.00°
• Required: 1 per wheel
• Kit includes an assortment of (9) sleeves
• 23131: 0.25°
• 23132: 0.50°
• 23133: 0.75°
• 23134: 1.00°
• 23135: 1.25°
• 23136: 1.50°
• 23137: 1.75°
• 23138: 2.00°
• 23139: 0.00°
