Made in USA

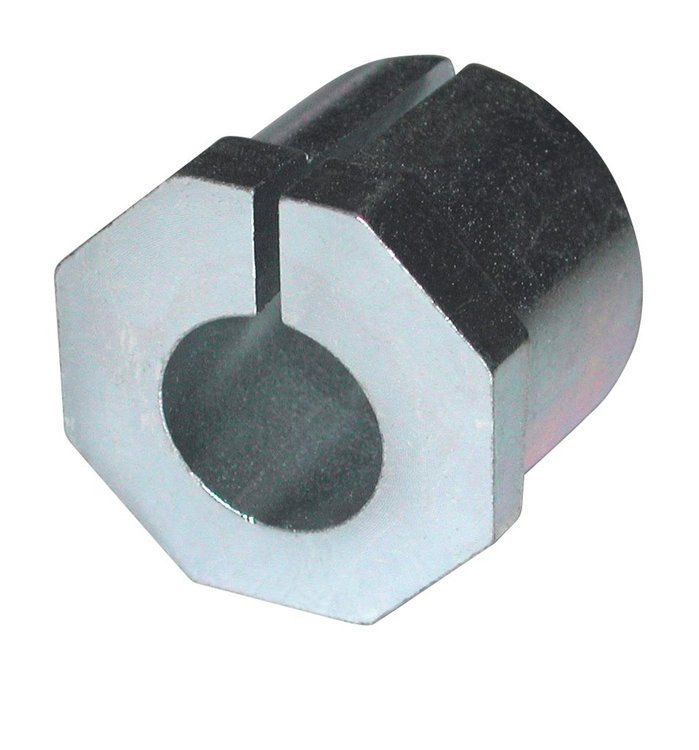

23134 1 4X4 Cam/Cas Slv Dodge Ram 2500 1994-1999, Dodge Ram 3500 1994-1999, Ford Excursion 2000-2005, Ford F-250 1999-2004,
InfoVehicle Info Needed
SPCPART NUMBER: 827-23134

23134 1 4X4 Cam/Cas Slv Dodge Ram 2500 1994-1999, Dodge Ram 3500 1994-1999, Ford Excursion 2000-2005, Ford F-250 1999-2004,

$1499
ShippingShips on 09/15/2026
Lowest PriceLowest Price Guarantee

1 4X4 Cam/Cas Slv
  • Dodge Ram 2500 1994-1999
  • Dodge Ram 3500 1994-1999
  • Ford Excursion 2000-2005
  • Ford F-250 1999-2004
  • Ford F-250 Super Duty 1999-2004
  • Ford F-350 1992-2004

    SPC 23134 Features:

    This sleeve will easily change Camber and/or Caster 1.00°. Simply remove the tire, cotter pin and upper ball joint stud nut and break the taper free between the stud and sleeve. Using a sleeve puller, remove the existing sleeve and install a zero-degree sleeve (23139) to determine the required change, then install the correct degree sleeve. To split cam ber and caster adjustment, rotate sleeve 45°.

    • Easily change caster / camber or both at the same time
    • Clear Zinc coating for corrosion resistance
    • Recommended Tools: 77880 - Sleeve Puller
    • Front Adjustment Range: Camber/Caster ±1.00°
    • Required: 1 per wheel

      • Precise Alignment

      Upgrade your truck's alignment precision with SPC Performance Sleeves, designed for Dodge and Ford models. These sleeves allow you to fine-tune camber, caster, or both simultaneously, providing superior control over your alignment settings. The easy-to-install sleeves fit seamlessly with the ball joint stud—simply remove the nut, release the taper, and install the correct sleeve to achieve the desired angle adjustment.

    Part TypeAlignment Caster Camber Bushing
    Product LineSPC Dodge/Ford Camber/Caster Sleeves
    BrandSPC
    Package Height1.6
    Package Width3.2
    Package Length4.3
    Weight0.25 PG
    Part CategoryPerformance Parts
    PositionFront
    Part FitmentDirect Fit
    Vendor Part Number23134
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file
