Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

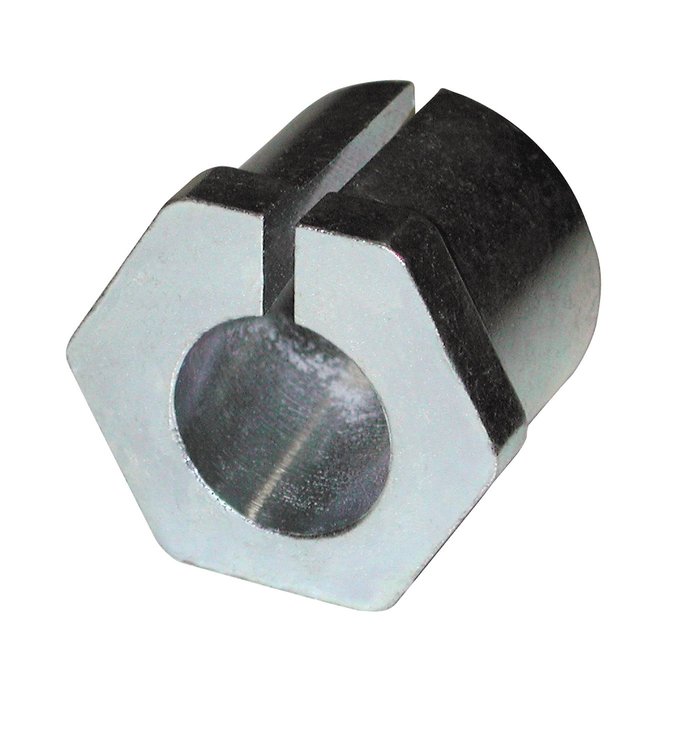

- Camber/Caster Sleeve, 2WD (.25 degrees) / 4WD (.20 degrees) Sold Each
These popular sleeves by SPC Performance are widely used to adjust caster and/or camber on many Ford and Mazda trucks. To install, simply loosen and remove upper ball joint pinch bolt. Remove top snap ring if one is present. Use a sleeve puller to remove the existing sleeve. To save time during alignment, use p/n 827-23199 zero degree sleeve to determine initial readings, then install correct sleeve. One sleeve per wheel is required. Note: Sleeves adjust to a smaller degree on Ford 4WD light trucks.
Show More
Applications:
Ford 2WD
- 1987-up F350
- 2000-04 Excursion
- 1987-96 F150/F250(L/D)
- 1989-90 Bronco II
- 1992-up E150/E250/E350/E450
- 1991-94 Explorer
- 1989-97 Ranger
- 1999-up F250/F350 Super Duty
Ford 4WD
- 1991-94 Explorer
- 1990-97 Ranger
Mazda 2WD
- 1991-97 Navajo Pickup
Mazda 4WD
- 1991-97 Navajo Pickup
Part TypeAlignment Caster Camber Bushing
Product LineSPC Ford/Mazda Caster/Camber Sleeves
BrandSPC
Package Height1.8
Package Width3.2
Package Length4.0
Weight0.4 PG
Part CategoryPerformance Parts
PositionFront
Part FitmentDirect Fit
Vendor Part Number23181
Package Qty1
Package TypeEA
