Vehicle Info NeededSPCPART NUMBER: 827-23191

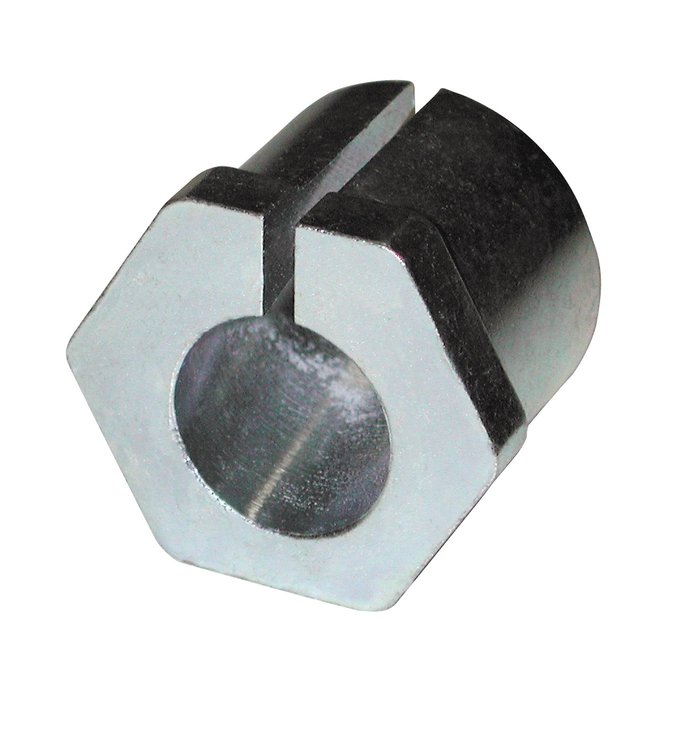

23191 2-3/4 Camber/Caster Sleeve Ford Bronco II 1989-1990, Ford E-150 2003-2014, Ford E-150 Club Wagon 2003-2005, Ford E-150
$3000
Lowest Price Guarantee2-3/4 Camber/Caster SleeveFord Bronco II 1989-1990 Ford E-150 2003-2014 Ford E-150 Club Wagon 2003-2005 Ford E-150 Econoline 1992-2008 Ford E-150 Econoline Club Wagon 1992-2002
SPC 23191 Features:
This sleeve will easily change Camber and/or Caster 2.75° on many Ford and Mazda RWD & 4WD trucks. To install, simply loosen and remove upper ball joint pinch bolt. Remove top snap ring if one is present. Using a sleeve puller, remove the existing sleeve and install a zero-degree sleeve (23199) to determine the required change, then install the correct degree sleeve. Note: Sleeves adjust to a smaller degree on Ford & Mazda 4WD light truck/SUV vehicles.
- Easily change caster / camber or both at the same time
- Clear Zinc coating for corrosion resistance
- Recommended Tools: 77880 - Sleeve Puller
- Front Adjustment Range RWD: Camber/Caster ±2.75°
- Front Adjustment Range 4WD: Camber/Caster ±2.00°
- Required: 1 per wheel
Part TypeAlignment Caster Camber Bushing
BrandSPC
Package Height1.5
Package Width3.0
Package Length4.3
Weight0.25 PG
Part CategoryPerformance Parts
PositionFront
Part FitmentDirect Fit
Vendor Part Number23191
Package Qty1
Package TypeEA
