23192 3 Camber/Caster Sleeve Ford Bronco II 1989-1990, Ford E-150 2003-2014, Ford E-150 Club Wagon 2003-2005, Ford E-150
InfoVehicle Info Needed
SPCPART NUMBER: 827-23192

23192 3 Camber/Caster Sleeve Ford Bronco II 1989-1990, Ford E-150 2003-2014, Ford E-150 Club Wagon 2003-2005, Ford E-150

$2483
Lowest PriceLowest Price Guarantee

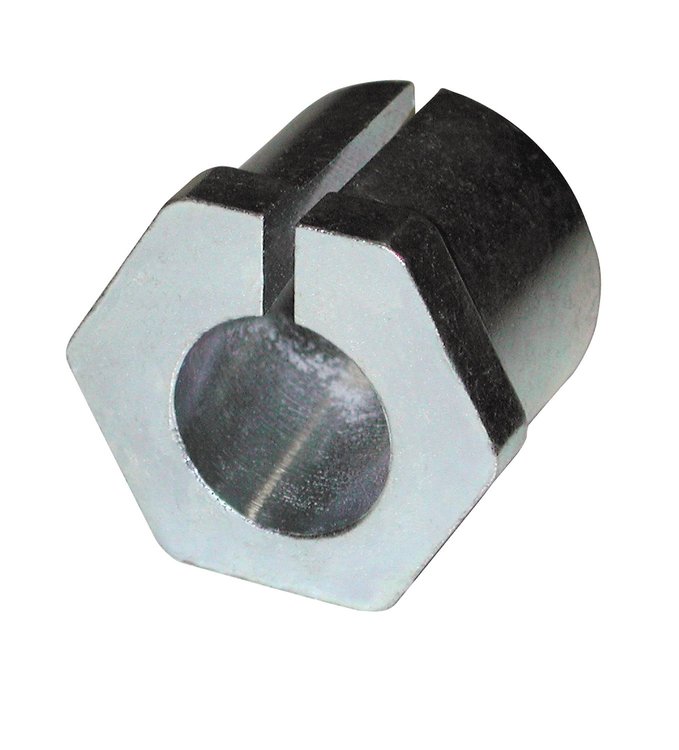

3 Camber/Caster Sleeve
  • Ford Bronco II 1989-1990
  • Ford E-150 2003-2014
  • Ford E-150 Club Wagon 2003-2005
  • Ford E-150 Econoline 1992-2008
  • Ford E-150 Econoline Club Wagon 1992-2002

    SPC 23192 Features:

    This sleeve will easily change Camber and/or Caster 3.00° on many Ford and Mazda RWD & 4WD trucks. To install, simply loosen and remove upper ball joint pinch bolt. Remove top snap ring if one is present. Using a sleeve puller, remove the existing sleeve and install a zero-degree sleeve (23199) to determine the required change, then install the correct degree sleeve. Note: Sleeves adjust to a smaller degree on Ford & Mazda 4WD light truck/SUV vehicles.

    • Easily change caster / camber or both at the same time
    • Clear Zinc coating for corrosion resistance
    • Recommended Tools: 77880 - Sleeve Puller
    • Front Adjustment Range RWD: Camber/Caster ±3.00°
    • Front Adjustment Range 4WD: Camber/Caster ±2.25°
    • Required: 1 per wheel

    • These popular sleeves by SPC Performance are widely used to adjust caster and/or camber on many Ford and Mazda trucks. To install, simply loosen and remove upper ball joint pinch bolt. Remove top snap ring if one is present. Use a sleeve puller to remove the existing sleeve. To save time during alignment, use p/n 827-23199 zero degree sleeve to determine initial readings, then install correct sleeve. One sleeve per wheel is required. Note: Sleeves adjust to a smaller degree on Ford 4WD light trucks.

    Show More

    Applications:

    Ford 2WD

    • 1987-up F350
    • 2000-04 Excursion
    • 1987-96 F150/F250(L/D)
    • 1989-90 Bronco II
    • 1992-up E150/E250/E350/E450
    • 1991-94 Explorer
    • 1989-97 Ranger
    • 1999-up F250/F350 Super Duty

    Ford 4WD

    • 1991-94 Explorer
    • 1990-97 Ranger

    Mazda 2WD

    • 1991-97 Navajo Pickup

    Mazda 4WD

    • 1991-97 Navajo Pickup
    Part TypeCamber Bushing
    Product LineSPC Ford/Mazda Caster/Camber Sleeves
    BrandSPC
    Package Height1.5
    Package Width3.1
    Package Length4.3
    Weight0.25 PG
    Part CategoryPerformance Parts
    PositionFront
    Part FitmentDirect Fit
    Vendor Part Number23192
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file
