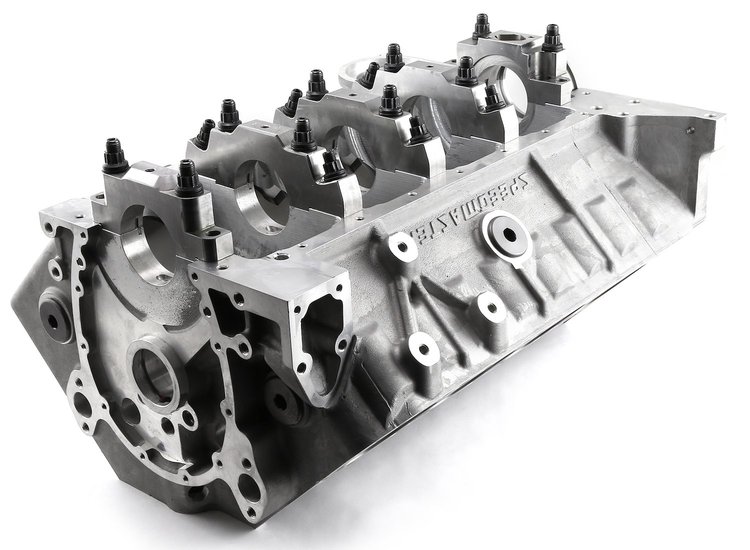

Aluminum Engine Block [Small Block Chevy 350]
Product Discontinued
SPEEDMASTERPART NUMBER: 746-1-286-014-02

Aluminum Engine Block [Small Block Chevy 350]

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Small Block Chevy
Aluminum Engine Block
  • Small Block Chevy 350
  • 9.025 in. Deck Height
  • 2-Piece Rear Main Seal
  • 4-Bolt Billet Steel Main Caps
  • Max Bore & Stroke: 4.030 in. x 4.000 in.
  • Sold Individually

    Main Cap Fasteners

    1-286-014-02 Features:

    • Redesigned block removes all common factory issues
    • Water jacket design remains true to original
    • A-356 aluminum with extra-thick cylinder walls and decks
    • Stronger block webs and billet steel 4-bolt main caps
    • Ductile iron sleeves
    • Enlarged bosses for oversize or offset lifters
    • Improved cooling with scalloped water jacket holes
    • Siamesed cylinders
    • External oil inlets-front & rear, crossover, and restrictor provisions provide simpler plumbing for an external pump
    • Screw-in freeze plugs
    • 1200+ Horsepower capability
    • Superior Engine Block Construction

      Speedmaster Aluminum and Cast Iron Engine Blocks are ideal for street or all-out racing use and styled with an OEM look that works with stock components. With the original water jacket design in place, Speedmaster re-engineered the blocks with extra-thick cylinder walls and decks, super-strong webs, and billet steel 4-bolt main caps to eliminate common factory flaws. Each high-density engine block has enlarged bosses for offset or oversize lifters and is well suited for any 1500+ HP supercharged, turbocharged, or nitrous application.

      Show More

      Build stronger, lighter, and more dependable power with Speedmaster Engine Blocks—meticulously engineered for high-performance applications. Machined from high-strength aluminum alloy, these blocks offer significant weight savings over traditional cast iron while delivering the structural integrity needed for serious horsepower and torque builds.

      For Chevy enthusiasts, the speedmaster sbc block provides a robust foundation featuring four-bolt billet main caps, standard deck height, and options for both 4.000" and 4.125" bores—perfect for maximizing versatility and durability in small-block Chevy projects.

      Beyond Chevy, the speedmaster engine blocks line includes Ford and LS options. Each variant is prepared for high-performance use, with billet main caps designed to support elevated power levels and withstand demanding conditions.

      These speedmaster engine blocks are not only engineered for strength but also refined for practicality. The precision pre-machining makes them ready to accept off-the-shelf components like camshafts, oil pumps, timing chains, motor mounts, and more—eliminating costly blueprinting or modifications.

      Whether you’re chasing peak performance or dependability, choosing a speedmaster block ensures you’re building on a platform engineered for endurance, precision, and adaptability. Ideal for street/strip performance, race builds, or high-output restorations, these blocks offer exceptional value and power potential in one sophisticated package.

    Part TypeEngine Block
    Product LineSpeedmaster Engine Blocks
    BrandSPEEDMASTER
    Package Height18.0
    Package Width20.0
    Package Length24.0
    Weight110.0 PG
    Part CategoryPerformance Parts
    Main Journal Type350 mains
    Maximum Bore Diameter4.03 in (102.362 mm)
    Engine Block StyleStock/OEM standard deck
    Engine Block MaterialA-356 aluminum
    Cylinder Bore As Shipped4.030 in. (102.362 mm)
    Engine Block Weight (Lbs.)110
    QuantitySold individually
    Main Bearing Size2.450 in. (SBC 350)
    Freeze Plugs IncludedYes
    Main Bolt Style4-bolt
    Fuel Pump TypeElectric
    Deck Height9.025 in (229.235 mm)
    Engine Make/SizeChevy 350
    Main Bearings IncludedYes
    Lifter Bore Size0.8427-0.8437 in. (SBC)
    Main Cap MaterialBillet steel
    Main Bearing Bore2.649 in. (SBC 350)
    Rear Main Seal Style2-piece
    Main Caps IncludedYes
    Part FitmentSemi Universal
    Main Cap Fasteners IncludedYes
    Package Qty1
    Package TypeEA
