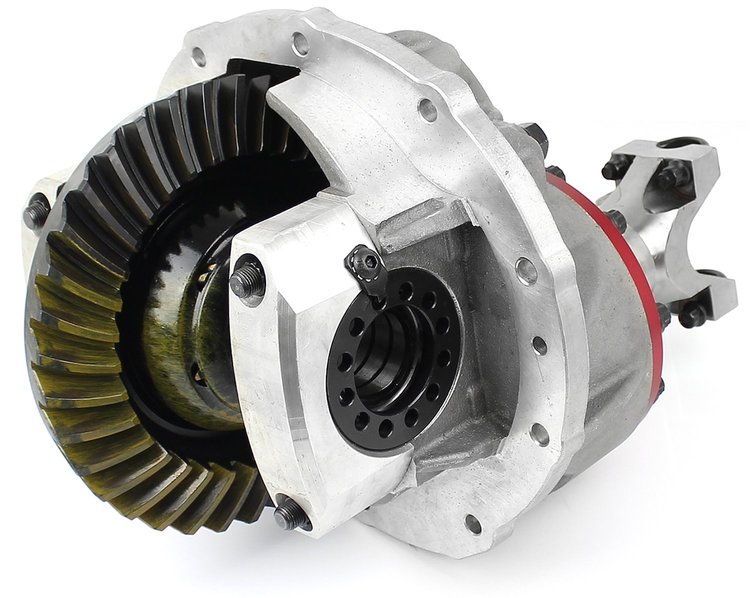

Ford 9-in. LSD HD Center Section Third Member Assembly - 35 Spline [5.43:1 Ratio]

Product Discontinued

SPEEDMASTERPART NUMBER: 746-PCE215100512

Ford 9-in. LSD HD Center Section Third Member Assembly - 35 Spline [5.43:1 Ratio]

Name: Ford 9-in. LSD HD Center Section Third Member Assembly - 35 Spline [5.43:1 Ratio]
Brand: SPEEDMASTER
SKU: 746-PCE215100512
Price: 1725.00 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

35-Spline HD Third Member Assemblies

Ford 9-in. LSD HD Complete Third Member Assembly

Aluminum Case, Main Cap

35-Spline

5.43:1 Ratio
Includes:

1350 Series Yoke

8620 Steel Gears

3.250 in. Carrier Bearing

Ring and Pinion

Bearings

(10) Pinion Bolts

LSD (Limited Slip Differential)
HD ( Heavy Duty)
Rated at 850 HP

Note: This Third Member Assembly also includes the U-joints/U-Bolts.

Ready-to-Install Third Member Assemblies

Speedmaster Ford 9-in. Complete Third Member Assemblies feature a Torque Worm 6-pinion limited-slip or full-spool differential in 28 and 31-spline axle shaft configurations. Third Member Assemblies are available in your choice of the most popular gear ratios and contain a new A356-T6 aluminum case that is assembled with all-new bearings, seals, heavy-duty ring and pinion, one-piece billet (through bolt) main caps,12-point bolts, u-joints/u-bolts, and precision-machined 1350 billet steel yoke. The 1350-series yoke is ideal for all forms of motorsports ranging from V8 SUPERCAR through Group 1 Drag Racing.

HD-style cases are rated at 850 HP but limited due to the size of the spline axle shaft.
Ultra HD-style cases are rated at 1200 HP but limited due to the size of the spline axle shaft.

LSD (Limited Slip Differential)
HD ( Heavy Duty)

Note: Each Third Member is to be used with a mineral-based oil of a range of EP140 Extreme pressure at a minimum. DO NOT USE split grades eg. 85/140 (these are not recommended). Failure to use the correct oil can result in gear damage, noise and may void your manufacturer's warranty.

Part TypeThird Member Assembly

Product LineSpeedmaster Ford 9-in. Complete Third Member Assemblies

BrandSPEEDMASTER

Package Height13.0

Package Width14.0

Package Length20.5

Weight76.5 PG

Part CategoryPerformance Parts

Yoke IncludedYes

Case StyleFord 9 in.

Standard Pinion LocationYes

QuantitySold individually

Ring Gear Load BoltNo

Yoke Style1350 Series

Bearings IncludedYes

Carrier Bearing Diameter3.25 in (82.55 mm)

Main Cap Retention StyleBolt

Main Cap MaterialAluminum

Ring And Pinion Ratio5.43:1

Carrier TypeLSD - Limited Slip

Part FitmentSemi Universal

Case MaterialAluminum

Pinion Support Bolt Quantity10

Vendor Part NumberPCE215.1005.12

Package Qty1

Package TypeEA
