![Ford 9-in. Full-Spool HD Center Section Third Member Assembly - 31 Spline [4.88:1 Ratio]](https://www.jegs.com/images/mini_750/700/746/746-pce215100910.jpg)
Product Discontinued
SPEEDMASTERPART NUMBER: 746-PCE215100910

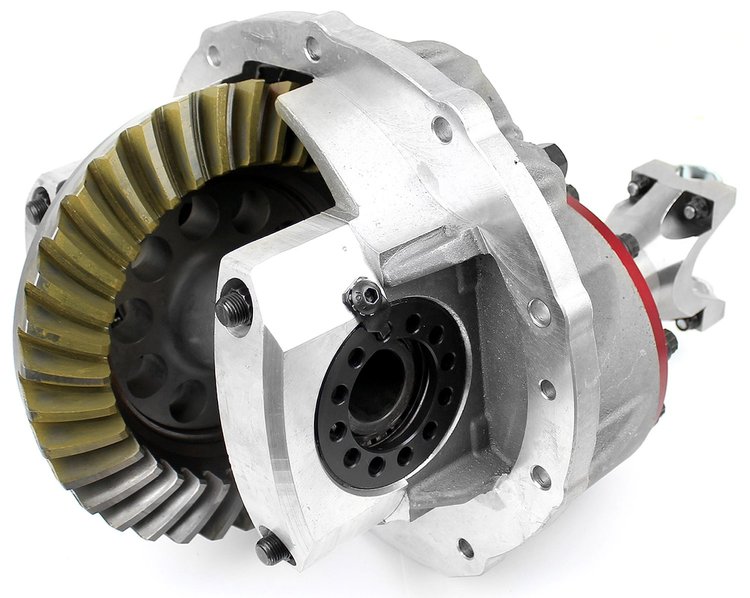

Ford 9-in. Full-Spool HD Center Section Third Member Assembly - 31 Spline [4.88:1 Ratio]
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
31-Spline HD Third Member Assemblies
Ford 9-in. Full-Spool HD Complete Third Member AssemblyAluminum Case, Main Cap 31-Spline 4.88:1 Ratio
Includes: 1350 Series Yoke 8620 Steel Gears 3.250 in. Carrier Bearing Ring and Pinion Bearings (10) Pinion Bolts
Includes:
- HD ( Heavy Duty)
- Can handle up to 850 HP but restricted to 700 HP because of the factory 31-spline axles
Note: This Third Member Assembly also includes the U-joints/U-Bolts.
Part TypeThird Member Assembly
BrandSPEEDMASTER
Package Height13.0
Package Width14.0
Package Length20.5
Weight73.8 PG
Part CategoryPerformance Parts
Yoke IncludedYes
Case StyleFord 9 in.
Standard Pinion LocationYes
QuantitySold individually
Ring Gear Load BoltNo
Yoke Style1350 Series
Bearings IncludedYes
Carrier Bearing Diameter3.25 in (82.55 mm)
Main Cap Retention StyleBolt
Main Cap MaterialAluminum
Ring And Pinion Ratio4.88:1
Carrier TypeLSD - Limited Slip
Part FitmentSemi Universal
Case MaterialAluminum
Pinion Support Bolt Quantity10
Vendor Part NumberPCE215.1009.10
Package Qty1
Package TypeEA
