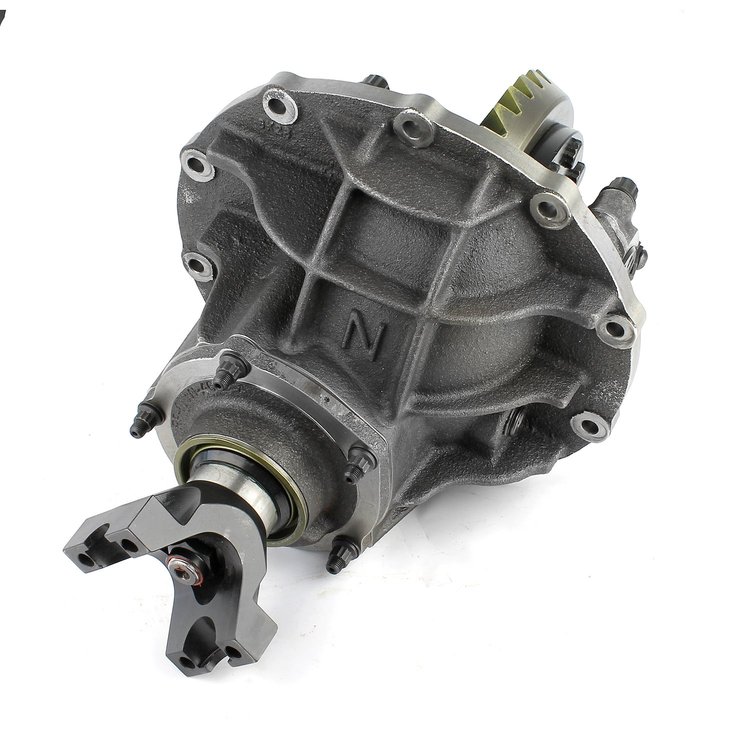

PCE215.2104.07 Ford 9 in. Nodular Iron 35-Spline Spool Third Member Assembly [4.30:1]

Name: PCE215.2104.07 Ford 9 in. Nodular Iron 35-Spline Spool Third Member Assembly [4.30:1]
Brand: SPEEDMASTER
SKU: 746-PCE215210407
Price: 1320.00 USD
Availability: InStock

^$1,320⁰⁰

Ships Tomorrow

Lowest Price Guarantee

35-Spline Third Member Assemblies

Ford 9 in. Nodular Iron 35-Spline Spool Third Member Assembly

4.30:1

Speedmaster PCE215.2104.07 Features:

Part Number: PCE215.2104
Part Type: Third Member Complete Assembly
Case Style: Ford 9"
Case Material: Nodular Steel
Main Cap Material: Steel
Main Cap Retention Style: Thru Bolt
Carrier Bearing Diameter (in): 3.250 in.
Axle Spline Quantity: 35 Spline
Pinion Support Bolt Quantity: 5
Standard Pinion Location: Yes
Ring Gear Load Bolt: No
Ring and Pinion Included: Yes
Ring and Pinion Ratio: All Ratios Available
Yoke Included: Yes
Yoke Style: 1350 Series
Bearings Included: Yes
Carrier Type: Full Spool
Quantity: Sold individually.
CalculatorGear Ratio Calculator

Ready-to-Install Third Member Assemblies

Speedmaster Ford 9-in. Complete Third Member Assemblies feature a Torque Worm 6-pinion limited-slip or full-spool differential in 28 and 31-spline axle shaft configurations. Third Member Assemblies are available in your choice of the most popular gear ratios and contain a new A356-T6 aluminum case that is assembled with all-new bearings, seals, heavy-duty ring and pinion, one-piece billet (through bolt) main caps,12-point bolts, u-joints/u-bolts, and precision-machined 1350 billet steel yoke. The 1350-series yoke is ideal for all forms of motorsports ranging from V8 SUPERCAR through Group 1 Drag Racing.

HD-style cases are rated at 850 HP but limited due to the size of the spline axle shaft.
Ultra HD-style cases are rated at 1200 HP but limited due to the size of the spline axle shaft.

LSD (Limited Slip Differential)
HD ( Heavy Duty)

Note: Each Third Member is to be used with a mineral-based oil of a range of EP140 Extreme pressure at a minimum. DO NOT USE split grades eg. 85/140 (these are not recommended). Failure to use the correct oil can result in gear damage, noise and may void your manufacturer's warranty.

Part TypeThird Member Assembly

Product LineSpeedmaster Ford 9-in. Complete Third Member Assemblies

BrandSPEEDMASTER

Package Height13.0

Package Width14.0

Package Length20.5

Weight47.77 PG

Part CategoryPerformance Parts

Part FitmentSemi Universal

Vendor Part NumberPCE215.2104.07

Package Qty1

Package TypeEA
