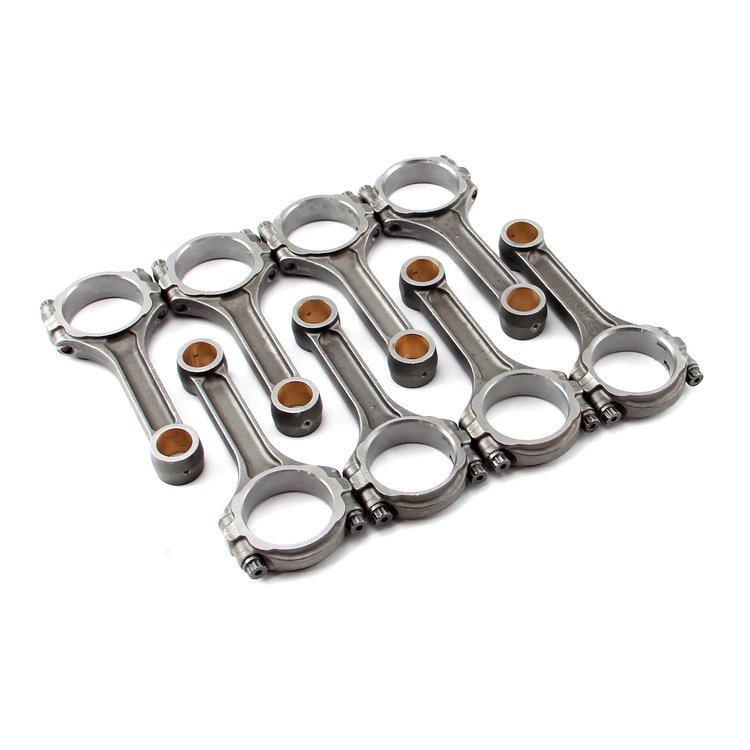

I-Beam Connecting Rods Ford 351W
InfoVehicle Info Needed
SPEEDMASTERPART NUMBER: 746-PCE274.1015

I-Beam Connecting Rods Ford 351W

$25100
2 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

5140 Chromoly
    I-Beam Connecting Rods
  • Ford 351W
  • Length: 5.956 in.
  • Pin End Bore Diameter: 0.912 in.
  • 5140 Chromoly Steel
  • Set of 8

    Procomp Electronics I-beam connecting rods incorporate all of the best features possible for an I-beam rod, including some strength adders found in H-beam designs. Procomp Electronics I-beam connecting rods are profiled with clearance for long stroke applications. They feature a one-rib cap design for added strength and bearing support, polished beams to eliminate stress risers, and cap screw bolts to greatly increase strength and horsepower capabilities. Manufactured from high-quality 5140 Chromoly steel.

Part TypeConnecting Rod
BrandSPEEDMASTER
Package Height4.1
Package Width9.8
Package Length11.1
Weight14.6 PG
Part CategoryPerformance Parts
Rod Journal Diameter2.31 in (58.7 mm)
Connecting Rod Bolt Head Style12-point
Wrist Pin StyleFloating
QuantitySold as a set of 8
Connecting Rod Beam StyleI-beam
Big End Width0.83 in (21.082 mm)
Connecting Rod Length Center To Center5.956 in (151.282 mm)
Weight Matched SetYes
Fastener Yield Strength (Psi)200,000
Pin End Bore Diameter0.912 in (23.2 mm)
Part FitmentSemi Universal
ToolStroker Combinations
Vendor Part NumberPCE274.1015
Package Qty1
Package TypeEA
