I-Beam Connecting Rods Big Block Chevy 454
InfoVehicle Info Needed
SPEEDMASTERPART NUMBER: 746-PCE274.1018

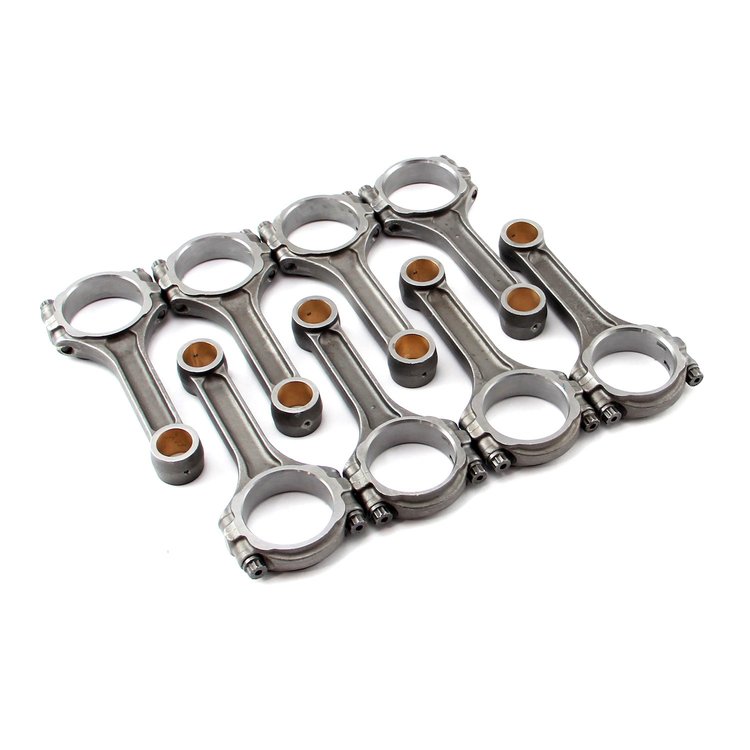

I-Beam Connecting Rods Big Block Chevy 454

$25920
2 left in stock
ShippingShips on Sep 08, 2026
Lowest PriceLowest Price Guarantee

5140 Chromoly
    I-Beam Connecting Rods
  • Big Block Chevy 454
  • Length: 6.385''
  • Crank Diameter: 2.2''
  • Pin Diameter: 0.990''
  • 5140 Chromoly Steel
  • 8/pkg

    These Procomp Electronics I-beam connecting rods incorporate all of the best features possible for an I-beam rod, including some strength adders found in H-beam designs. Procomp Electronics I-beam connecting rods are profiled with clearance for long stroke applications. These connecting rods feature a one-rib cap design for added strength and bearing support, polished beams to eliminate stress risers. Procomp Electronics cap screw bolts to greatly increase strength and horsepower capabilities.

    Procomp Electronics I Beam Street connecting rods are manufactured from high quality 5140 chromoly steel. The rods are x-rayed and ultrasonically tested with all surfaces shot peened and stress relieved.

Part TypeConnecting Rod Set
BrandSPEEDMASTER
Package Height4.4
Package Width9.6
Package Length11.2
Weight15.38 PG
Part CategoryPerformance Parts
Connecting Rod Bolt BrandARP
Rod Journal Diameter2.2 in (55.9 mm)
Advertised Horsepower Rating (Hp)600 hp
Connecting Rod Bolt Head Style12-point
Connecting Rod Bolt MaterialARP2000 alloy
Wrist Pin StyleFloating
Connecting Rod Bolt Diameter0.375 in (9.525 mm)
Connecting Rod Beam StyleI-beam
RemanufacturedNo
Big End Width0.99 in (25.146 mm)
Approximate Connecting Rod Weight (G)N/A
Weight Matched SetYes
Fastener Yield Strength (Psi)220,000
Clearanced For StrokerNo
Connecting Rod MaterialForged 5140 steel
Advertised Rpm Rating6,500 rpm
Big End Bore Diameter2.2 in (55.88 mm)
QuantitySold as a set of 8
Connecting Rod Length Center To Center6.385 in (162.179 mm)
Connecting Rod FinishShot-peened
MagnafluxedYes
Cap Retention StyleCap screw
Pin End Bore Diameter0.99 in (25.1 mm)
Part FitmentSemi Universal
Vendor Part NumberPCE274.1018
Package Qty1
Package TypeEA
