Vehicle Info NeededSPEEDMASTERPART NUMBER: 746-PCE274.1033

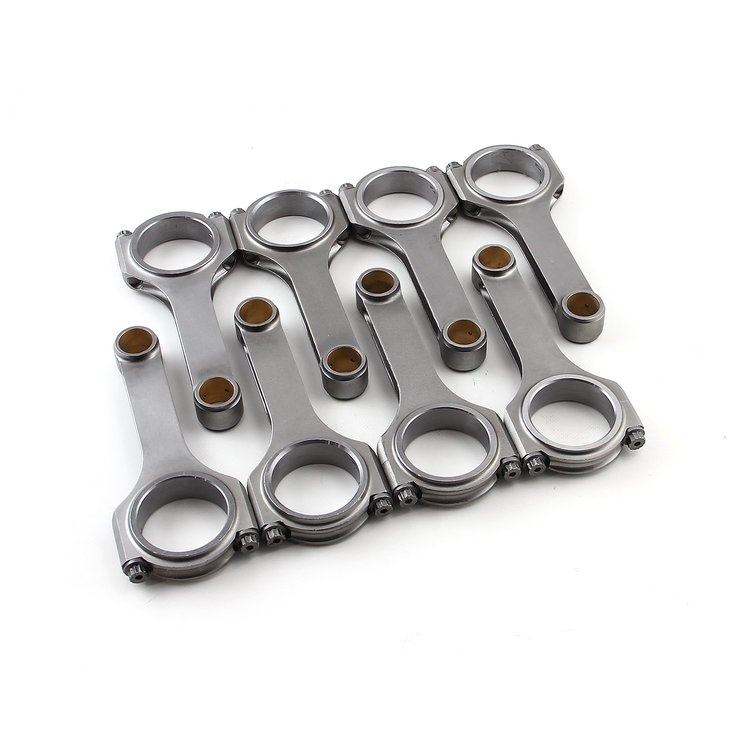

H-Beam Street/Strip Connecting Rods Chevy LS Series
$43780
1 left in stock
Ships Tomorrow
Lowest Price GuaranteeChevy LS Series
- H-Beam Street/Strip Connecting Rods
- Chevy LS Series
- Length: 6.125''
- Crank Diameter: 2.1''
- Pin Diameter: 0.927''
- 8/pkg
Procomp Electronics PCE274.1033 H-beam connecting rods are one of the strongest connecting rods available. Procomp Electronics H-beam connecting rods are perfect for supercharged and nitrous applications. These rods incorporate a special dowelled cap for specific cap-to-rod alignment and are profiled with extra clearance for stroker applications.
Procomp Electronics H Beam Street / Strip connecting rods are manufactured from aircraft quality 4340 Chromoly steel, x-rayed, and ultrasonically tested with all surfaces shot peened and stress relieved.
Part TypeConnecting Rod Set
BrandSPEEDMASTER
Package Height4.7
Package Width10.1
Package Length11.1
Weight13.04 PG
Part CategoryPerformance Parts
Connecting Rod Bolt BrandPCE
Rod Journal Diameter2 in (50.8 mm)
Advertised Horsepower Rating (Hp)700 hp
Connecting Rod Bolt Head Style12-point
Connecting Rod Bolt Material8740 chromoly steel
Wrist Pin StyleFloating
Connecting Rod Bolt Diameter0.438 in (11.125 mm)
Connecting Rod Beam StyleH-beam
RemanufacturedNo
Big End Width0.945 in (24.003 mm)
Approximate Connecting Rod Weight (G)682
Weight Matched SetYes
Fastener Yield Strength (Psi)200,000
Clearanced For StrokerYes
Connecting Rod MaterialForged 4340 steel
Advertised Rpm Rating7,500 rpm
Big End Bore Diameter2.1 in (53.34 mm)
QuantitySold as a set of 8
Connecting Rod Length Center To Center6.125 in (155.575 mm)
Connecting Rod FinishShot-peened
MagnafluxedYes
Cap Retention StyleThrough-bolt
Pin End Bore Diameter0.927 in (23.5 mm)
Part FitmentSemi Universal
Vendor Part NumberPCE274.1033
Package Qty1
Package TypeEA
