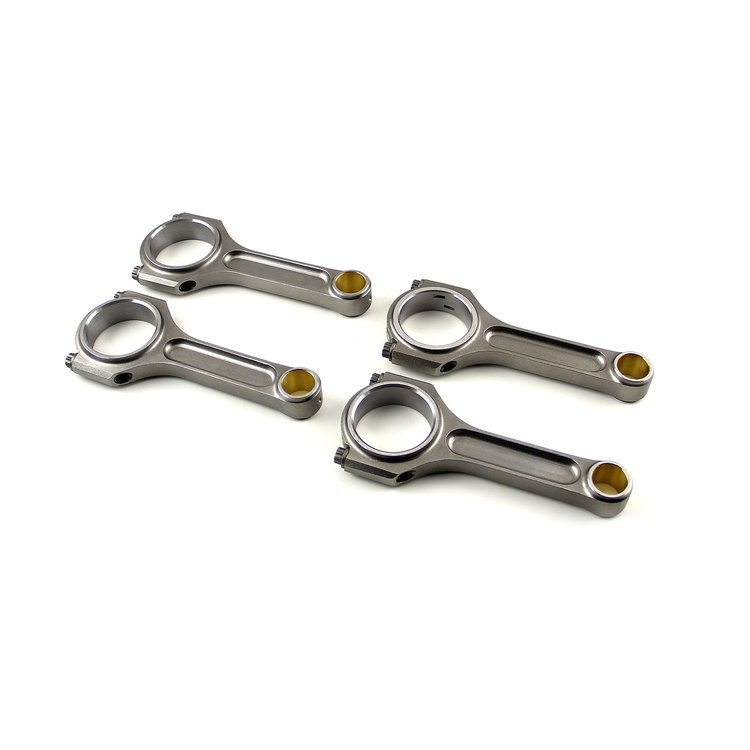

I-Beam Race Connecting Rods for Honda H23
InfoVehicle Info Needed
SPEEDMASTERPART NUMBER: 746-PCE274.1111

I-Beam Race Connecting Rods for Honda H23

$22090
ShippingShips on 09/09/2026
Lowest PriceLowest Price Guarantee

4340 Chromoly
    I-Beam Race Connecting Rods
  • Honda H23
  • Length: 5.630 in.
  • Rod Journal Diameter: 1.890 in.
  • Rod Bolt Diameter: 7/16 in.
  • Pin Diameter: 0.866 in.
  • 4340 Chromoly Steel
  • Bronze Bushing
  • Set of 4

    Procomp Electronics I-beam connecting rods incorporate all of the best features possible for an I-beam rod, including some strength adders found in H-beam designs. Procomp Electronics I-beam connecting rods are profiled with clearance for long stroke applications. These connecting rods feature a one-rib cap design for added strength and bearing support, polished beams to eliminate stress risers. Procomp Electronics cap screw bolts to greatly increase strength and horsepower capabilities.

    Procomp Electronics I Beam Tace connecting rods are manufactured from aircraft 4340 chromoly steel and designed to be the most reliable in the racing industry. The rods are x-rayed and ultrasonically tested with all surfaces shot peened and stress relieved. Perfect for engines producing 1000+ HP

    Superior Performance and Reliability for Your Rotating Assembly

    Designed to be the most reliable in the racing industry, Speedmaster I-Beam Connecting Rods are made of aircraft-quality 4340 or 5140 Chromoly steel. Rods are X-rayed & ultrasonically tested with all surfaces shot-peened & stress-relieved. They are perfect for engines that produce up to 1,000 HP.

Part TypeConnecting Rod
Product LineSpeedmaster I-Beam Connecting Rods
BrandSPEEDMASTER
Package Height2.5
Package Width6.5
Package Length9.0
Weight5.71 PG
Part CategoryPerformance Parts
Connecting Rod Bolt BrandPCE
Rod Journal Diameter1.89 in (48 mm)
Advertised Horsepower Rating (Hp)1,000 hp
Connecting Rod Bolt Head Style12-point
Wrist Pin StyleFloating
QuantitySet of 4
Connecting Rod Beam StyleI-beam
RemanufacturedNo
Big End Width0.935 in (23.749 mm)
Connecting Rod Length Center To Center5.63 in (143.002 mm)
Connecting Rod FinishShot-peened
Approximate Connecting Rod Weight (G)635
MagnafluxedYes
Weight Matched SetYes
Fastener Yield Strength (Psi)200,000
Cap Retention StyleThrough-bolt
Part FitmentSemi Universal
Clearanced For StrokerYes
ToolStroker Combinations
Vendor Part NumberPCE274.1111
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
