Vehicle Info NeededSPEEDMASTERPART NUMBER: 746-PCE274.1119

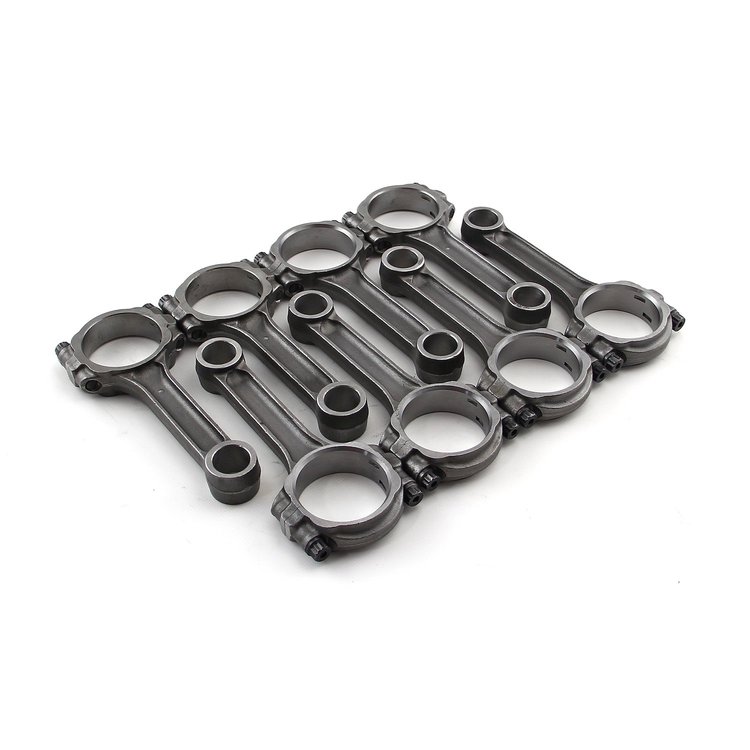

I-Beam Connecting Rods Big Block Ford 460
$25690
4 left in stock
Ships Today
Lowest Price Guarantee5140 Chromoly
I-Beam Connecting RodsBig Block Ford 460 Length: 6.605 in. Crank Diameter: 2.500 in. Pin Diameter: 1.040 in. 5140 Chromoly Steel Set of 8
Features:
- 600 hp advertised rating
- 6,000 rpm advertised rating
- Shot-peened Connecting Rod Finish
- Press-Fit Wrist Pin Style
- Through-bolt Cap Retention Style
- 3/8 in. Connecting Rod Bolt Diameter
- 200,000 psi Fastener Yield Strength
- 12-point Connecting Rod Bolt Head Style
- 2.500 in. Rod Journal Diameter
- 0.999 in. Big End Width
- Weight-Matched
Part TypeConnecting Rod
BrandSPEEDMASTER
Package Height4.0
Package Width9.9
Package Length11.1
Weight16.25 PG
Part CategoryPerformance Parts
Rod Journal Diameter2.5 in (63.5 mm)
Connecting Rod MaterialForged 5140 steel
Advertised Horsepower Rating (Hp)600 hp
Advertised Rpm Rating6,000 rpm
Connecting Rod Bolt Head Style12-point
Wrist Pin StylePress-fit
Connecting Rod Beam StyleI-beam
Big End Width0.999 in (25.375 mm)
Connecting Rod Length Center To Center6.605 in (167.767 mm)
MagnafluxedYes
Weight Matched SetYes
Fastener Yield Strength (Psi)200,000
Cap Retention StyleThrough-bolt
Pin End Bore Diameter1.04 in (26.4 mm)
Part FitmentSemi Universal
Clearanced For StrokerNo
ToolStroker Combinations
Vendor Part NumberPCE274.1119
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
