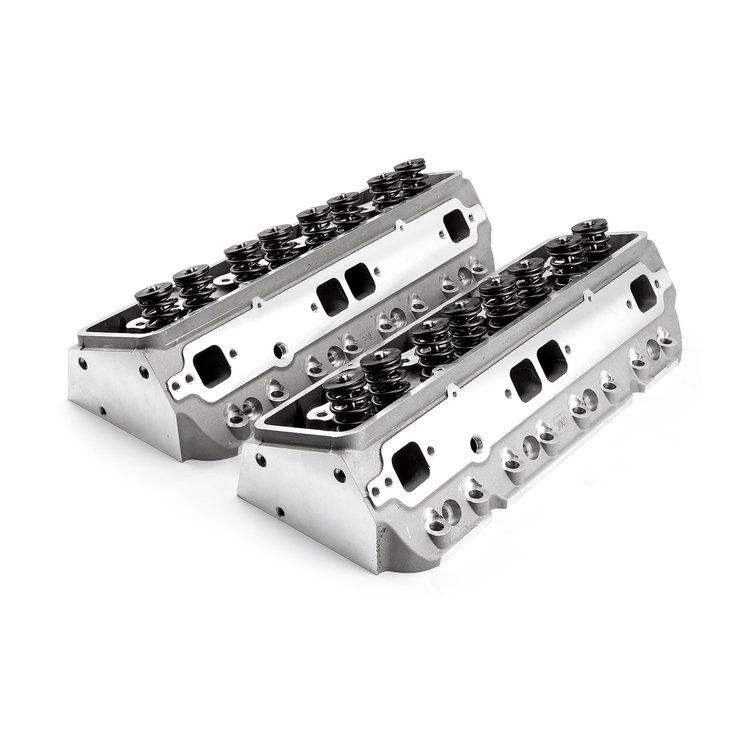

Cast Aluminum Cylinder Head Small Block Chevy 350 w/Hydraulic Roller Cam
Items You Need
Special Note: Camshaft and Lifters Not Included
- Intake Runner: 205cc
- Combustion Chamber Volume: 64cc
- Intake Valve: 2.020"
- Exhaust Valve: 1.600"
- Max Lift: .580"
- Coil Bind: .750"
- Intake Install: 145 lbs @ 1.9
- Exhaust Install: 145 lbs @ 1.9
- Closed Seat Pressure: 145 lbs
- Open Seat Pressure: 360 lbs
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Ditch Restrivtive, Heavy Cyclinder Heads for Speedmaster Performance Heads
One of the best upgrades for your engine is to replace cast iron heads with a better performing and lighter aluminum head. Speedmaster's line of performance cylinder heads have proven themselves time and time again both on the track and on the dyno. Many variations are offered for popular Small and Big Block engines to bring performance output to the next level. Available in as-cast for mild street applications and in Fully CNC machined for the serious enthusiast.
