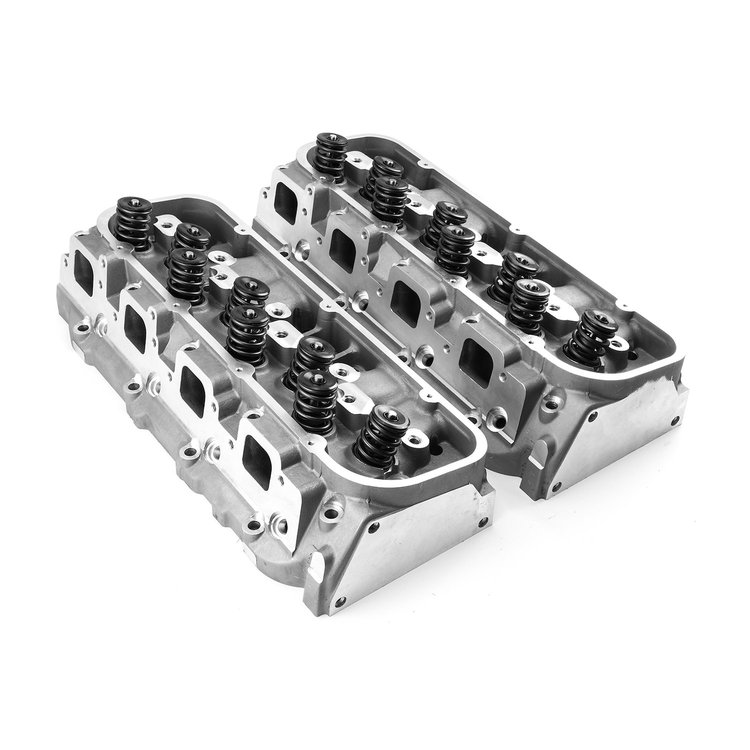

Cast Aluminum Cylinder Head Big Block Chevy 396 w/Hydraulic Flat Tappet Cam
InfoVehicle Info Needed
SPEEDMASTERPART NUMBER: 746-PCE281.2034

Cast Aluminum Cylinder Head Big Block Chevy 396 w/Hydraulic Flat Tappet Cam

$1,38000
2 left in stock
ShippingShips on Sep 14, 2026
Lowest PriceLowest Price Guarantee

Chevy Big Block
Cast Aluminum Cylinder Head
  • Big Block Chevy 396 w/Hydraulic Flat Tappet Cam
  • Assembled Head
  • 119cc Combustion Chamber
  • 305cc Intake Runner
  • Includes Valves & Springs
  • Port Dimensions: Int 2.5x1.77, Ex 2.05x1.82
  • Set of 2

    Special Note: Camshaft and Lifters Not Included

    • Intake Runner: 305cc
    • Combustion Chamber Volume: 119cc
    • Intake Valve: 2.250"
    • Exhaust Valve: 1.880"
    • Max Lift: .550"
    • Coil Bind: .740"
    • Intake Install: 130 lbs @ 1.8
    • Exhaust Install: 130 lbs @ 1.8
    • Closed Seat Pressure: 110 lbs
    • Open Seat Pressure: 300 lbs Installation Requirements:
    • 746-PCE279.1008 Head Bolt Kit
    • 746-PCE254.1038 Intake Pushrod Set
    • 746-PCE254.1044 Exhaust Pushrod Set

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    • Part TypeCylinder Head
    BrandSPEEDMASTER
    Package Height12.5
    Package Width12.5
    Package Length24.0
    Weight72.0 PG
    Part CategoryPerformance Parts
    Maximum Valve Lift0.55 in (13.97 mm)
    Part FitmentSemi Universal
    Vendor Part NumberPCE281.2034
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file
