Special Note: Camshaft and Lifters Not Included

Assembly Specifications

Max Lift: .580
Coil Bind: .740
Intake Install: 145lbs @ 1.9
Exhaust Install: 145lbs @ 1.9
Closed Seat Pressure: 145lbs
Open Seat Pressure: 360lbs

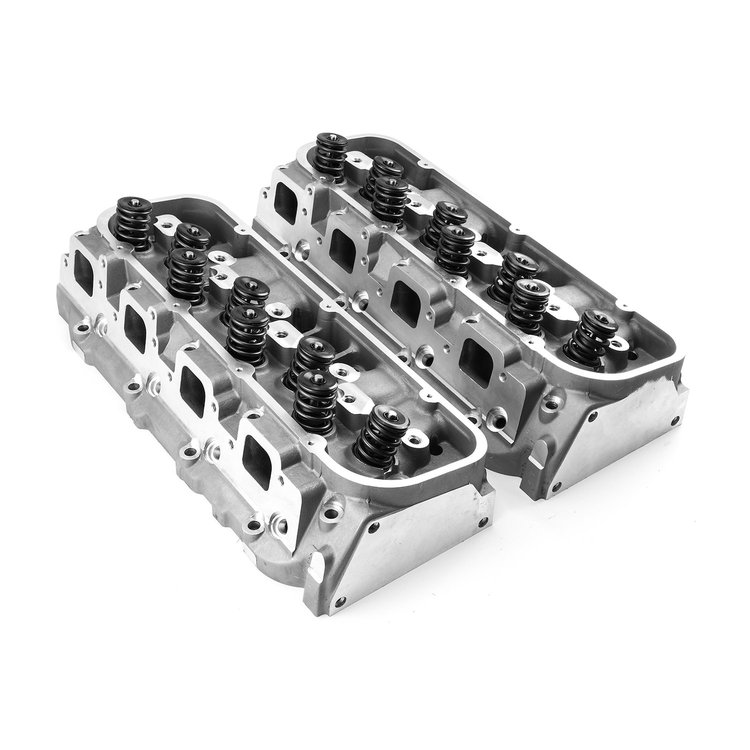

As with all Speedmaster cylinder heads, our Big Block Chevrolet heads are Gravity Die Cast . This casting process creates a much more uniform and robust cylinder head. With the increasingly large displacements becoming common, the need for more airflow is necessary. If you are looking to build a 400-500+hp engine, give our PCE281.1489 heads a try. They offer a smaller cross - section to increase the incoming air s velocity, resulting in great driveability, power and economy. On engines over 500hp, use the rectangle port PCE281.1488 heads. The mid-size cross section works well on engines under 540cu.in and under 7000RPM. If you are working on a larger, or higher RPM engine, step up to the CNC ported PCE281.1511 heads. The added volume of the PCE281.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
