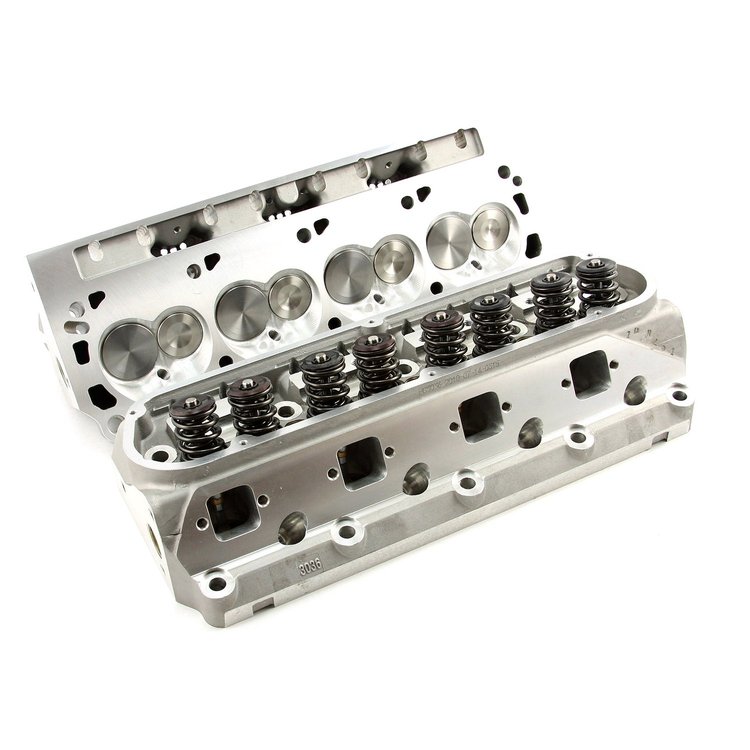

CNC Aluminum Cylinder Head Small Block Ford 289/302/351W w/Solid Roller Cam
Product Discontinued
SPEEDMASTERPART NUMBER: 746-PCE281.2054

CNC Aluminum Cylinder Head Small Block Ford 289/302/351W w/Solid Roller Cam

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Ford Small Block
CNC Aluminum Cylinder Head
  • Small Block Ford 289/302/351W w/Solid Roller Cam
  • Assembled Head
  • 64cc Combustion Chamber
  • 227cc Intake Runner
  • Includes Valves & Springs
  • Set of 2

    Special Note: Camshaft and Lifters Not Included

    Includes Intake Valves, Exhaust Valves, Valve Springs, Damper Spring, Retainers, Locks, Valve Stem Seals, & Valve Guides

    • Intake Valve: 2.020"
    • Exhaust Valve: 1.600"
    • Max Lift: .650"
    • Coil Bind: .925"
    • Intake Install: 275 lbs @ 2.1
    • Exhaust Install: 275 lbs @ 2.1
    • Closed Seat Pressure: 210 lbs
    • Open Seat Pressure: 450 lbs

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    • Part TypeCylinder Head
    BrandSPEEDMASTER
    Package Height5.51
    Package Width9.06
    Package Length23.62
    Weight78.13 PG
    Part CategoryPerformance Parts
    Maximum Valve Lift0.65 in (16.51 mm)
    Part FitmentSemi Universal
    Vendor Part NumberPCE281.2054
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file
