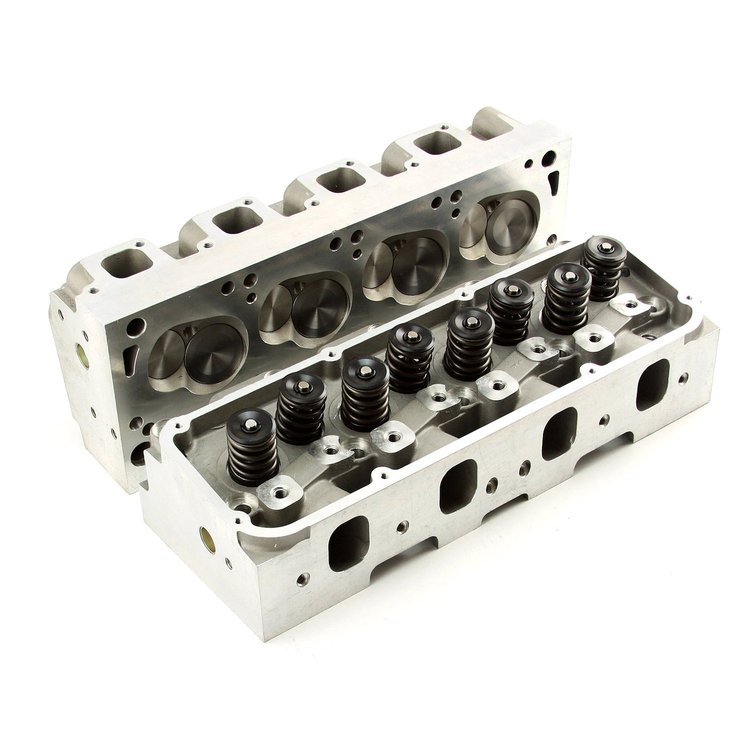

PCE281.2058 Cast Aluminum Cylinder Head Small Block Ford 351C w/Hydraulic Flat Tappet Cam

Name: PCE281.2058 Cast Aluminum Cylinder Head Small Block Ford 351C w/Hydraulic Flat Tappet Cam
Brand: SPEEDMASTER
SKU: 746-PCE281.2058
Price: 1495.00 USD
Availability: InStock

^$1,495⁰⁰

1 left in stock

Ships Tomorrow

Lowest Price Guarantee

Ford Small Block

Cast Aluminum Cylinder Head

Small Block Ford 351C w/Hydraulic Flat Tappet Cam

Assembled Head

64cc Combustion Chamber

220cc Intake Runner

Includes Valves & Springs

Set of 2

Special Notes: Camshaft and Lifters Not Included. Cleveland3V heads require specific head studs that are longer than standard - UseSpeedmaster PCE279.1014 -These studs should only be finger tightened intothe block. Torque the nuts to 65lbs. using high-pressure moly lube.

Cylinder Head Style: Assembled
Cylinder Head Material: Aluminum
Cylinder Head Finish: Natural
Combustion Chamber Volume (cc): 64 cc
CNC-Machined Combustion Chamber: No
Intake Runner Volume (cc): 220 cc
CNC-Machined Intake Runner: No
CNC-Machined Exhaust Runner: No
Intake Port Shape: Rectangular
Intake Port Location: Standard 3V (4v with tongues)
Exhaust Port Shape: Rectangular
Exhaust Port Location: Raised
Spark Plug Style: Standard
Comp. Valve Job: No
Intake Valves Included: Yes
Intake Valve Diameter (in): 2.190 in.
Exhaust Valves Included: Yes
Exhaust Valve Diameter (in): 1.710 in.
Valve Springs Included: Yes
Maximum Valve Lift (in): 0.550 in.
Outside Diameter of Outer Spring (in): 1.450 in.
Damper Spring Included: Yes
Number of Springs Per Valve: Dual
Retainers Included: Yes
Retainer Material: Chromoly steel
Locks Included: Yes
Lock Style: 10 degree
Valve Stem Seals Included: Yes
Valve Stem Seal Style: Positive stop
Rocker Arm Studs Included: No
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: No
Valve Cover Mounting Style: Perimeter Bolt
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: Standard
Exhaust Valve Angle: Standard
Valve Guides Included: Yes
Valve Guide Material: Bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 3-angle
Valve Seat Material: Ductile iron
Steam Holes Drilled: No
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: No
Sold as a pair

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCylinder Head

BrandSPEEDMASTER

Package Height6.6

Package Width18.2

Package Length22.0

Weight60.0 PG

Part CategoryPerformance Parts

Maximum Valve Lift0.55 in (13.97 mm)

Part FitmentSemi Universal

Vendor Part NumberPCE281.2058

Package Qty1
