Special Note: Camshaft and Lifters Not Included

Assembly Specifications

Max Lift: .580
Coil Bind: .740
Intake Install: 130lbs @ 1.8
Exhaust Install: 130lbs @ 1.8
Closed Seat Pressure: 125lbs
Open Seat Pressure: 320lbs

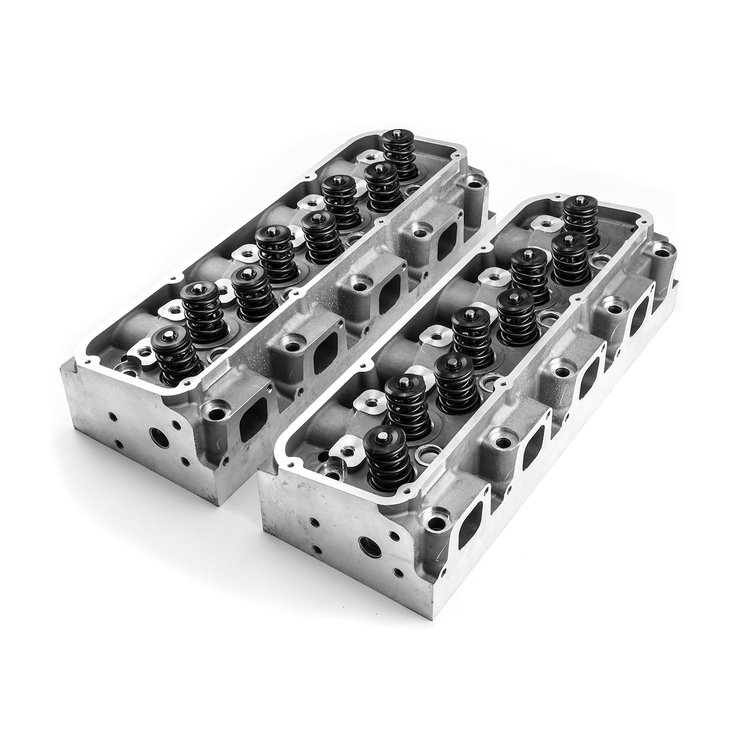

The Speedmaster Ford Cleveland 3v heads are a perfect upgrade for both 2 and 4 barrel engines. We have re-designed the intake ports by raising the floor to help cut down on the massive cross-section that hampers OEM 4 barrel heads. Not only do you get more performance out of the box than OEM heads, our heads are significantly lighter since they are made of Gravity Die Cast aluminum. As another benefit, you can run higher compression with aluminum heads before the onset of power robbing detonation. There is absolutely no reason to rebuild a set of OEM castings when you can buy a lighter, higher flowing and more detonation resistant cylinder head for less money from us!

To top it all off, we offer CNC ported Cleveland heads for people lo

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
