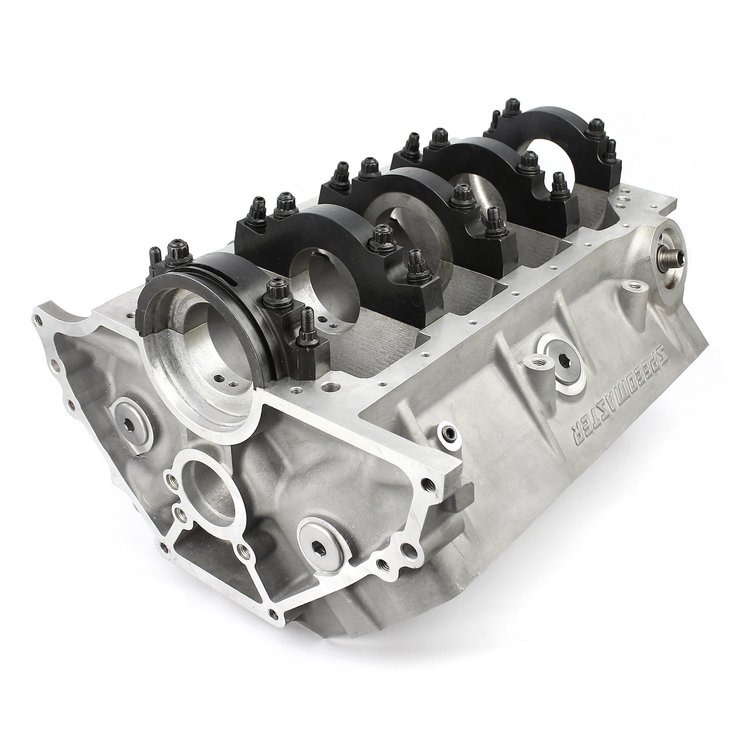

PCE286.1049 Aluminum Bare Engine Block Ford 351W Windsor, 9.500 in. Deck Height, 4-Bolt Billet Steel Main Caps
InfoVehicle Info Needed
SPEEDMASTERPART NUMBER: 746-PCE286.1049

PCE286.1049 Aluminum Bare Engine Block Ford 351W Windsor, 9.500 in. Deck Height, 4-Bolt Billet Steel Main Caps

$3,93080
Truck Freight
ShippingShips on 12/03/2026
Lowest PriceLowest Price Guarantee

Items You Need

Engine Assembly Lube [4 oz. Bottle]

JEGS

Engine Assembly Lube [4 oz. Bottle]

Part Number : 555-28000
$599$6.99
You Save$1.00
Engine Storage Bag 48 in. L x 35 in. W x 34 in. H

JEGS

Engine Storage Bag 48 in. L x 35 in. W x 34 in. H

Part Number : 555-80039
$1099$12.99
You Save$2.00
Engine Stand [1000 lb. Capacity]

JEGS

Engine Stand [1000 lb. Capacity]

Part Number : 555-80040
$5999$109.99
You Save$50.00
Engine Stand [1250 lb. Capacity]

JEGS

Engine Stand [1250 lb. Capacity]

Part Number : 555-80041
$7499$137.99
You Save$63.00

Ford 351W Windsor
    Bare Engine Block
  • Ford 351W Windsor
  • 9.500 in. Deck Height
  • 1-Piece Rear Main Seal
  • 4-Bolt Billet Steel Main Caps
  • Max Bore & Stroke: 4.125 in. x 4.125 in.
  • Aluminum

    Features Include: Ductile iron sleeves and extra thick cylinder walls & decks, 4 bolt splayed mains, enlarged bosses for offset or oversize lifters and scalloped water jacket holes for improved cooling. Siamesed cylinders and front and rear external oil inlets, crossover and restrictor provisions to simplify plumbing with external pump. Screw in freeze plugs. Used in 1500+HP Applications!

    The next level of performance is these aluminum Ford 351w small blocks. Block is ready for the street racer or all out racer with added strength and cubic inches. All the factory flaws were redesigned to eliminate all problems, still using the original water jacket design. Blocks are cast from highest quality A-356 aluminum with extra-thick cylinder walls and decks. The blocks webs are stronger and fitted with billet steel 4-bolt main caps. Ideal for sprint cars, modifieds, late model stock cars, dragsters, unlimited open competition classes, supercharge

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    Superior Engine Block Construction

    Speedmaster Aluminum and Cast Iron Engine Blocks are ideal for street or all-out racing use and styled with an OEM look that works with stock components. With the original water jacket design in place, Speedmaster re-engineered the blocks with extra-thick cylinder walls and decks, super-strong webs, and billet steel 4-bolt main caps to eliminate common factory flaws. Each high-density engine block has enlarged bosses for offset or oversize lifters and is well suited for any 1500+ HP supercharged, turbocharged, or nitrous application.

    Show More

    Build stronger, lighter, and more dependable power with Speedmaster Engine Blocks—meticulously engineered for high-performance applications. Machined from high-strength aluminum alloy, these blocks offer significant weight savings over traditional cast iron while delivering the structural integrity needed for serious horsepower and torque builds.

    For Chevy enthusiasts, the speedmaster sbc block provides a robust foundation featuring four-bolt billet main caps, standard deck height, and options for both 4.000" and 4.125" bores—perfect for maximizing versatility and durability in small-block Chevy projects.

    Beyond Chevy, the speedmaster engine blocks line includes Ford and LS options. Each variant is prepared for high-performance use, with billet main caps designed to support elevated power levels and withstand demanding conditions.

    These speedmaster engine blocks are not only engineered for strength but also refined for practicality. The precision pre-machining makes them ready to accept off-the-shelf components like camshafts, oil pumps, timing chains, motor mounts, and more—eliminating costly blueprinting or modifications.

    Whether you’re chasing peak performance or dependability, choosing a speedmaster block ensures you’re building on a platform engineered for endurance, precision, and adaptability. Ideal for street/strip performance, race builds, or high-output restorations, these blocks offer exceptional value and power potential in one sophisticated package.

Part TypeEngine Block
Product LineSpeedmaster Engine Blocks
BrandSPEEDMASTER
Package Height17.5
Package Width20.75
Package Length24.25
Weight210.0 PG
Part CategoryPerformance Parts
Main Bearing BoreStandard 351c
Maximum Stroke4.125 in.
Engine Block Weight (Lbs.)113 Lbs @ 4.125" in. Bore
Rear Main Seal StyleStandard 1pc.
Main Bearing Size2.749 in. (Standard 351c)
Cylinder Bore Diameter4.000 in
MaterialA-356 Aluminum
Deck Thickness0.675 in. Min
Part FitmentSemi Universal
Fuel Pump TypeStandard Mechanical Provision
Deck Height9.500 in.
Vendor Part NumberPCE286.1049
Package Qty1
Package TypeEA
