Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Small Block Chevy

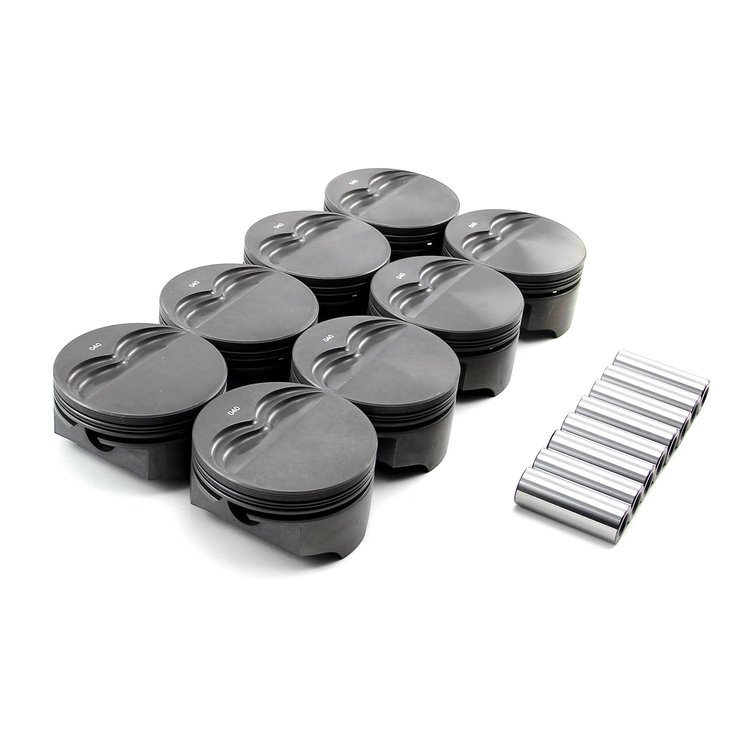

Hypereutectic Pistons Small Block Chevy 383 with 6 in. Rod Flat Top with Two Valve Reliefs Compression Distance: 1.100 in. Piston Head Volume: -4.00cc Pin Diameter: 0.927 in. 4.030 in. Bore Set of 8
Speedmaster PCE305.1127 Hypereutectic Piston Ring Notes:
- Piston Ring Thickness: 1.5mm x 1.5mm x 2.5mm (1/16" x 1/16" x 1/8")
- Requires Speedmaster PCE308.1002 0.020 in. rail spacer support and piston rings (PCE306.1063) - Sold Separately
Part TypePiston
BrandSPEEDMASTER
Package Height3.94
Package Width9.06
Package Length16.93
Weight11.62 PG
Part CategoryPerformance Parts
Oil Ring Thickness (Mm)2.5
Second Ring Thickness (Mm)1.5
Wrist Pin StyleFull Floating
Oil Ring Thickness0.125 in (3.2 mm)
Piston StyleFlat top, with two valve reliefs
Piston Head Volume (Cc)-4
Compression Distance1.1 in (27.94 mm)
Top Ring Thickness1/16 in.
Piston MaterialHypereutectic aluminum
Pin Diameter0.927 in (23.5 mm)
Part FitmentSemi Universal
Top Ring Thickness (Mm)1.5
Second Ring Thickness1/16 in.
Bore4.030
Vendor Part NumberPCE305.1127
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
