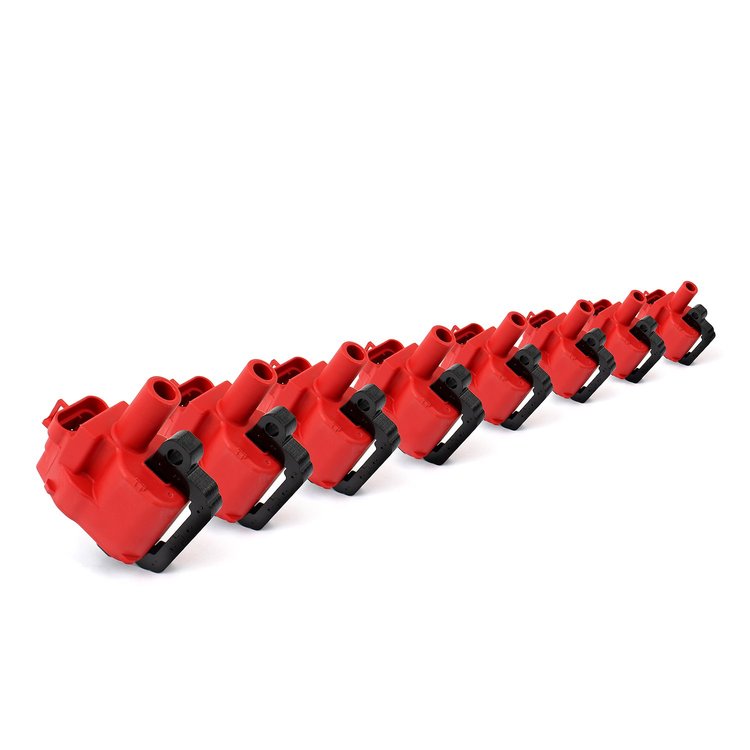

High-Output E-Poxy Ignition Coil Set GM LS1/LS6
Product Discontinued
SPEEDMASTERPART NUMBER: 746-PCE382.1025

High-Output E-Poxy Ignition Coil Set GM LS1/LS6

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

GM LS
High-Output E-Poxy Ignition Coil Set
  • GM LS1/LS6
  • Female Socket
  • 40,000 V Maximum Voltage
  • 56:1 Turns Ratio
  • Red Finish
  • Set of 8

    Features:

    • Installs in place of the stock GM LS coils and connect directly to the factory connectors
    • Provides increased spark energy, voltage, and multiple spark capabilities
    • Improves the combustion process of the fuel mixture to create an efficient burn
    • Increases throttle response, smooth idle, and quick starts

    Note: Fits GM LS1/LS6 engine models with spark plug wires and coil connectors entering the same side of the coil.

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

  • Part TypeIgnition Coil
    BrandSPEEDMASTER
    Package Height6.4
    Package Width11.0
    Package Length12.1
    Weight6.3 PG
    Part CategoryPerformance Parts
    Primary Resistance0.730 ohms
    Coil Wire AttachmentFemale/Socket
    Coil StyleCoil pack
    QuantitySold as a set of 8
    Ballast Resistor IncludedNo
    Maximum Voltage40,000 V
    Turns Ratio56:01:00
    Peak Current124 mA
    Coil ShapeSquare
    Mounting Bracket IncludedNo
    Inductance3.6 mH
    Coil ColorRed
    Coil Wire IncludedNo
    Spark Duration1,110 uS
    Secondary Resistance3.7K ohms
    Part FitmentSemi Universal
    Coil Internal ConstructionEpoxy
    Vendor Part NumberPCE382.1025
    Package Qty1
    Package TypeEA
