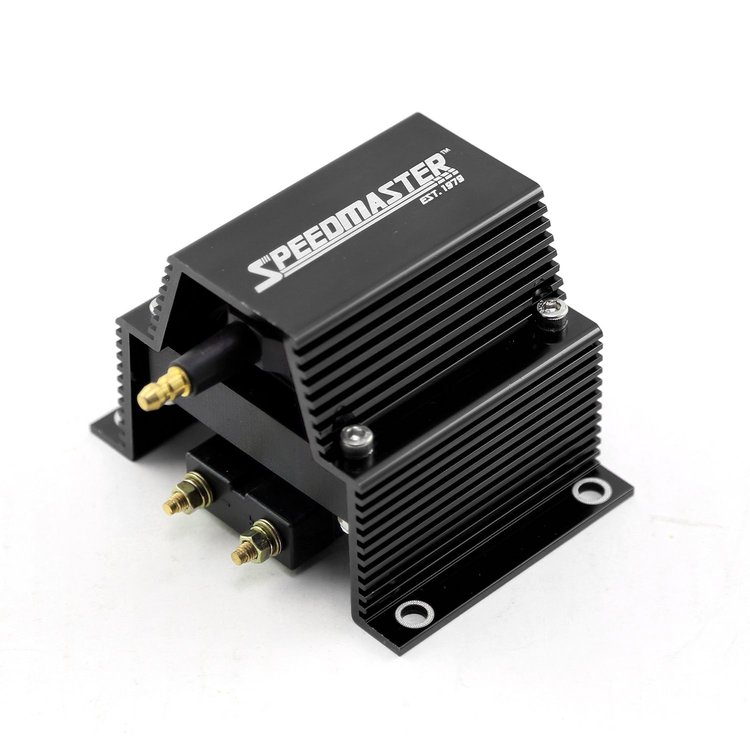

Pc91 High-Output E-Core Ignition Coil, Male/HEI [Black]
Product Discontinued
SPEEDMASTERPART NUMBER: 746-PCE382.1030

Pc91 High-Output E-Core Ignition Coil, Male/HEI [Black]

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Universal
    Pc91 High-Output E-Core Ignition Coil
  • Male/HEI
  • 12 V
  • 60,000 V
  • 100:1 Turns Ratio
  • Black

    The Speedmaster high output technology coil produces up to 70% more spark energy than stock coils with outstanding reliability. This unit is recommended for street, strip, circle track, and drag racing. Internally the coil also has large gauge wire windings for maximum spark current and voltage with better heat dissipation at high rpm. High voltage arcing is minimized through screw-on connectors and a high tension tower. Ideal for use with capacitive discharge (CD) ignition systems and all Speedmaster High Output Ignitions.

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeIgnition Coil
BrandSPEEDMASTER
Package Height3.75
Package Width5.0
Package Length5.0
Weight2.21 PG
Part CategoryPerformance Parts
Primary Resistance0.450 ohms
Coil Wire AttachmentMale/HEI
Coil StyleE-core
QuantitySold individually
Ballast Resistor IncludedNo
Maximum Voltage60,000 V
Turns Ratio100:1
Peak Current280 mA
Coil ShapeSquare
Mounting Bracket IncludedNo
Inductance6.6 mH
Coil ColorBlack
Coil Wire IncludedNo
Spark Duration225 uS
Secondary Resistance3.80K ohms
Part FitmentSemi Universal
Coil Internal ConstructionEpoxy
Vendor Part NumberPCE382.1030
Package Qty1
Package TypeEA
