Vehicle Info NeededSPEEDMASTERPART NUMBER: 746-PCE382102401

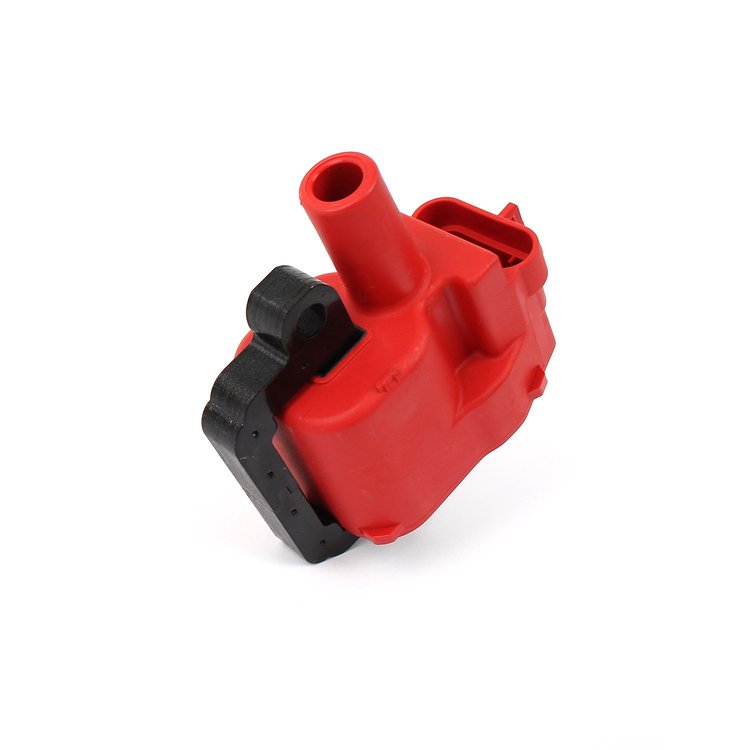

High-Output E-Poxy Ignition Coil GM LS1/LS6
$3290
Ships on 09/04/2026
Lowest Price GuaranteeGM LS
- High-Output E-Poxy Ignition Coil
- GM LS1/LS6
- Female Socket
- 40,000 V Maximum Voltage
- 56:1 Turns Ratio
- Red Finish
- Sold Individually
Note: Fits GM LS1/LS6 engine models with spark plug wire and coil connector entering the same side of the coil.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeIgnition Coil
BrandSPEEDMASTER
Package Height3.4
Package Width3.6
Package Length4.0
Weight0.68 PG
Part CategoryPerformance Parts
Primary Resistance0.730 ohms
Coil Wire AttachmentFemale/Socket
Coil StyleCoil pack
QuantitySold individually
Ballast Resistor IncludedNo
Maximum Voltage40,000 V
Turns Ratio56:01:00
Peak Current124 mA
Coil ShapeSquare
Mounting Bracket IncludedNo
Inductance3.6 mH
Coil ColorRed
Coil Wire IncludedNo
Spark Duration1,110 uS
Secondary Resistance3.7K ohms
Part FitmentSemi Universal
Coil Internal ConstructionEpoxy
Vendor Part NumberPCE382.1024.01
Package Qty1
Package TypeEA
