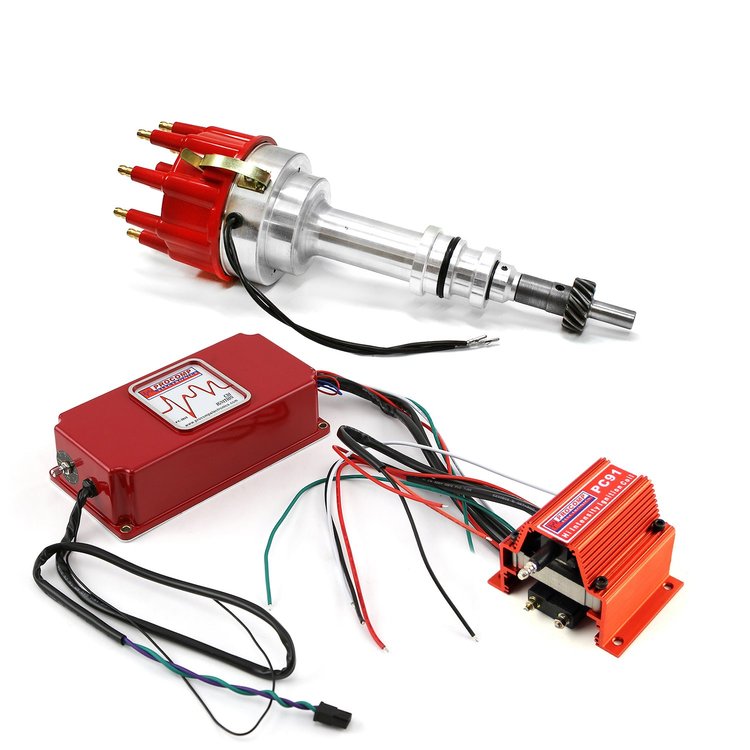

Distributor:

• Computer-Controlled Compatible: No
• Trigger Style: Magnetic
• Advance Type: Mechanical
• Cap Style: Male/HEI
• Mechanical Tach Drive: No
• Slip Collar: No
• Gear Material: Steel
• Ignition Box Required: Yes
• Distributor Gear Rotation: Standard
• Distributor Cap Color: Red
• Housing Material: Billet aluminum
• Housing Finish: CNC Machined
• Marine Use: No

Ignition Box:

• Ignition Box Output: Capacitive discharge
• Circuitry: Analog
• Rev Limiter: Yes - 2
• Timing Retard: None
• Data Acquisition: No
• CD Voltage Output to Coil: 500 V
• Current Draw: 1 amp at 1,000 rpm
• Spark Output (millijoules): 115 Millijoules
• Minimum Operating Voltage: 9 V
• Maximum Operating Voltage: 16 V
• Ignition Box Color: Red

Ignition Coil:

• Coil Wire Attachment: Male/HEI
• Coil Style: E-core
• Primary Resistance: 0.450 ohms
• Coil Internal Construction: Epoxy
• Coil Color: Red
• Maximum Voltage: 60,000 V
• Turns Ratio: 100:1
• Secondary Resistance: 3.80K ohms
• Inductance: 6.6 mH
• Peak Current: 280 mA
• Spark Duration: 225 uS
• Mounting Bracket Included: No
• Coil Wire Included: No
• Ballast Resistor Included: No
• Coil Shape: Square
