Vehicle Info NeededSPEEDMASTERPART NUMBER: 746-PCE435.1005

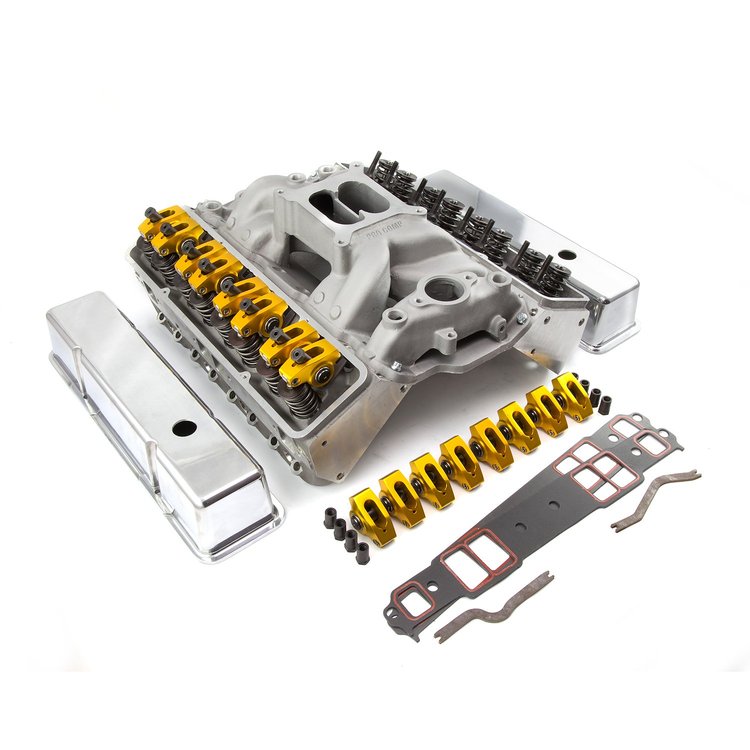

SuperStreet-Series Top End Engine Combo Kit Small Block Chevy 350 [Straight Plug Heads] Flat Tappet
$1,66000
Ships Tomorrow
Lowest Price GuaranteeSmall Block Chevy
- SuperStreet-Series Top End Engine Combo Kit
- Small Block Chevy 350
- Straight Plug Heads
- Flat Tappet
- 1,500-6,500 RPM
- 64 cc Combustion Chamber
- 190 cc Intake Runners
Kit includes:
Fully-assembled Procomp Electronics cylinder heads
Intake manifold
Valve covers
Intake manifold gaskets
Roller rockers
Guideplates
Screw-in studs
Assembly Specifications:
Max Lift: .580
Coil Bind: .740
Intake Install: 130 lbs. @ 1.8
Exhaust Install: 130 lbs. @ 1.8
Closed Sear Pressure: 125 lbs.
Open Seat Pressure: 320 lbs.Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeTop End Kit
BrandSPEEDMASTER
Package Height12.0
Package Width17.0
Package Length23.0
Weight59.72 PG
Intake Manifold IncludedYes
Retainers IncludedYes
Intake Port ShapeSquare
Guideplates IncludedYes
Pushrods IncludedNo
Oiling StyleThrough pushrod
Cylinder Head Bolts IncludedNo
Valve Seats MachinedYes
Rocker Arm Nut Thread Size3/8-24 in.
Heat CrossoverNo
Number Of Springs Per ValveDual
Spark Plug StyleStraight
Guideplate Pushrod Size5/16 in.
Exhaust Port ShapeSquare
Damper Spring IncludedYes
Valve Stem Seals IncludedYes
Intake Valve Diameter2.020
Valve Guide MaterialBronze
Outside Diameter Of Outer Spring1.45 in (36.8 mm)
Camshaft IncludedNo
Rocker Arm Studs IncludedYes
Retainer MaterialChromoly steel
Cnc-Machined Combustion ChamberNo
Lifters IncludedNo
Exhaust Valve Diameter1.6 in (40.6 mm)
Part CategoryPerformance Parts
Cylinder Head MaterialAluminum
Intake StyleSingle Plane w/Divider
Intake Port LocationStandard
Valve Cover MaterialCast aluminum
Rocker Arm Nut Thread Size (In.)3/8"-24
Intake FinishNatural
Exhaust Valves IncludedYes
Lock Style10 degree
Gaskets IncludedYes
Rocker Arms IncludedYes
Valve Covers IncludedYes
Rocker Arm Nuts IncludedYes
Cylinder Head FinishNatural
Intake Valve Angle23
Valve Seat MaterialDuctile iron
Valve Springs IncludedYes
Fuel Delivery StyleCarbureted
Valve Seat Machine Style3-angle
Valve Guides IncludedYes
Cnc-Machined Intake RunnerNo
Valve Cover FinishPolished
Intake Valves IncludedYes
QuantitySold as a kit
Accessory Bolt Holes DrilledYes
Exhaust Port LocationStandard
Machined For O-RingNo
Timing Chain And Gears IncludedNo
Exhaust Valve Angle23
Cylinder Head StyleAssembled
Part FitmentSemi Universal
Valve Cover Mounting StylePerimeter bolt
Valve Stem Seal StylePositive stop
Intake Runner Volume (Cc)190
Cnc-Machined Exhaust RunnerNo
Vendor Part NumberPCE435.1005
Package Qty1
Package TypeEA
