Vehicle Info NeededSPEEDMASTERPART NUMBER: 746-PCE553.1001

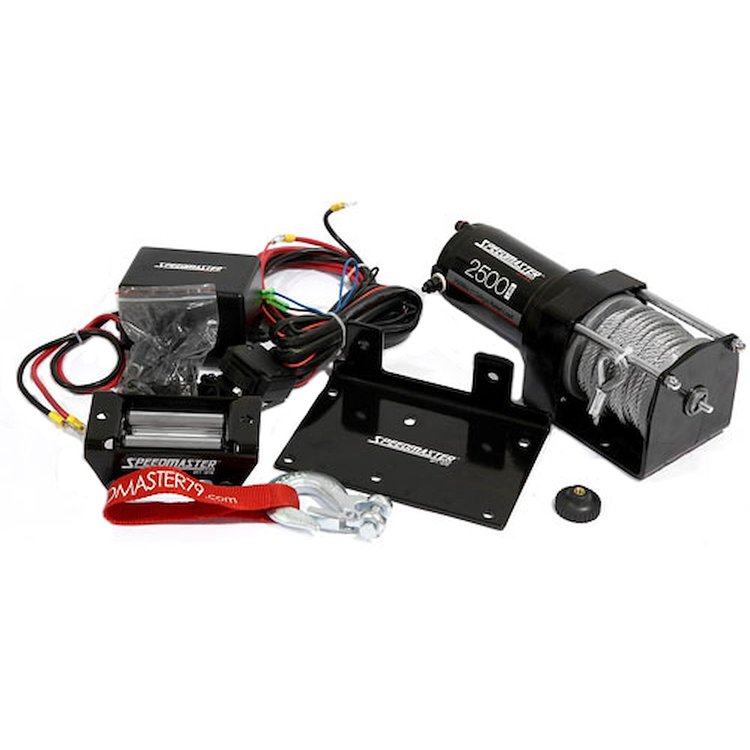

Electric ATV Winch Kit With Remote Switch 1.2 HP Motor
$13060
Ships on 09/09/2026
Lowest Price GuaranteeATV
- Electric ATV Winch Kit With Remote Switch
- 1.2 HP Motor
- Rated Line Pull 2500 lbs.
- Roller Fairlead
- 40 FT. 3/16" Cable
- Free Spooling Clutch
- Dynamic Braking
- Remote/Handle Bar Mount Switch (10 ft. Lead)
Specifications: - Remote: Handlebar Remote Switch 10-ft Lead
- Free-Spooling Clutch: Pull and Turn
- Brake: Action Dynamic
- Power Out: Yes
- Drive Gear: Differential Planetary
- Includes Winch Line
- Winch Line Type: Cable
- Winch Line Diameter: 3/16"
- Winch Line Material: Steel
- Winch Line Length: 40 ft.
- Weight: 13.5 lbs.
- Motor Horsepower: 1.20 hp
- Gear Reduction Ratio: 153:1
- Drum Diameter: 1.25"
- Drum Length: 2.9"
- Overall Dimensions: 300mm (L) x 110mm (W) x 105mm (H)
- Winch Finish: Black
- Recommended Battery: 175CCA min.
Part TypeWinch
BrandSPEEDMASTER
Package Height6.2
Package Width12.2
Package Length13.8
Weight19.41 PG
Part CategoryAccessories
Part FitmentUniversal
Vendor Part NumberPCE553.1001
Package Qty1
Package TypeEA
