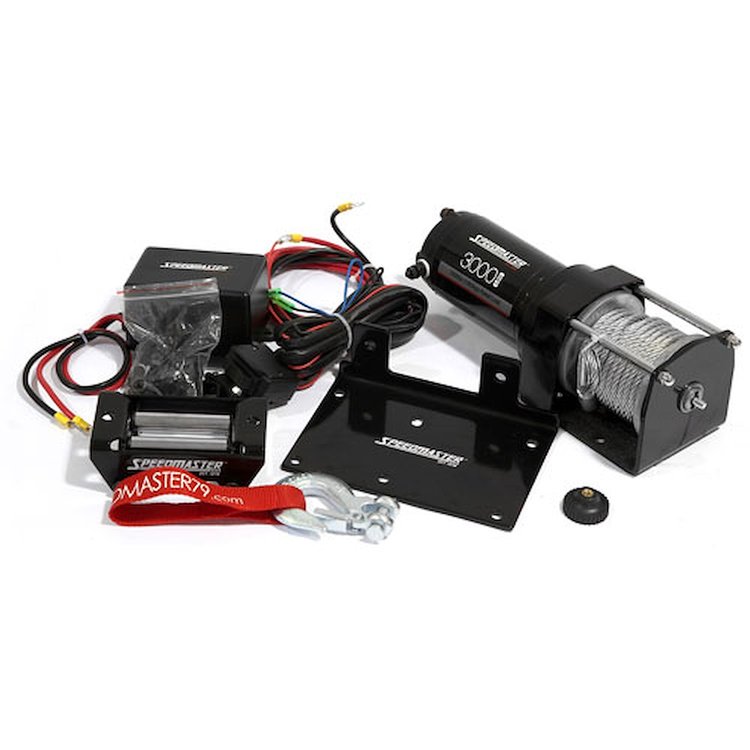

Electric ATV Winch Kit With Remote Switch 1.2 HP Motor
InfoVehicle Info Needed
SPEEDMASTERPART NUMBER: 746-PCE553.1002

Electric ATV Winch Kit With Remote Switch 1.2 HP Motor

$14690
ShippingShips on 11/03/2026
Lowest PriceLowest Price Guarantee

ATV
    Electric ATV Winch Kit With Remote Switch
  • 1.2 HP Motor
  • Rated Line Pull 3000 lbs.
  • Roller Fairlead
  • 30 FT. 7/32" Cable
  • Free Spooling Clutch
  • Dynamic Braking
  • Remote/Handle Bar Mount Switch (10 ft. Lead)

    Specifications:
  • Remote: Handlebar Remote Switch 10-ft Lead
  • Free-Spooling Clutch: Pull and Turn
  • Brake: Action Dynamic
  • Power Out: Yes
  • Drive Gear: Differential Planetary
  • Includes Winch Line
  • Winch Line Type: Cable
  • Winch Line Diameter: 7/32"
  • Winch Line Material: Steel
  • Winch Line Length: 30 ft.
  • Weight: 14.3 lbs.
  • Motor Horsepower: 1.20 hp
  • Gear Reduction Ratio: 153:1
  • Drum Diameter: 1.25"
  • Drum Length: 2.9"
  • Overall Dimensions: 300mm (L) x 110mm (W) x 105mm (H)
  • Winch Finish: Black
  • Recommended Battery: 175CCA min.
    Speedmaster ATV and 4WD Winches are designed specifically for off-road applications, as a complete recovery system with all of the muscle and reliability needed to bail you out of any situation.Each Speedmaster ATV and 4WD Winches provide you with exceptional performance and reliable pulling power, that delivers superior duty cycle with improved motor life.

    Speedmaster 4WD Winches have a pulling range from 9500-13000 pounds and have a black powdercoat finish with stainless steel hardware and aluminum cross bars for long-term durability. Each 4WD Winch comes complete with a wired remote switch and a wireless remote control, waterproof box that can be mounted over the winch motor or winch cable, a four way roller fairlead and a forged hook.

Part TypeWinch
Product LineSpeedmaster Winches
BrandSPEEDMASTER
Package Height7.5
Package Width12.5
Package Length13.7
Weight19.83 PG
Part CategoryAccessories
Vendor Part NumberPCE553.1002
Package Qty1
Package TypeEA
