Made in USA

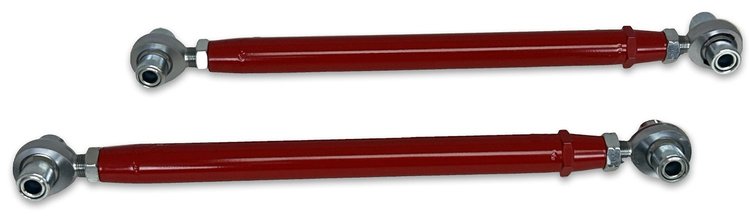

223-4130R Adjustable Rear Lower Control Arms w/ Spherical Rod Ends, 1964-1977 GM A-Body [Red]
InfoVehicle Info Needed
SPOHN PERFORMANCEPART NUMBER: 267-223-4130R

223-4130R Adjustable Rear Lower Control Arms w/ Spherical Rod Ends, 1964-1977 GM A-Body [Red]

$26900
1 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

GM A-Body
Tubular Adjustable Rear Lower Control Arms w/ Spherical Rod Ends
  • 1964-1977 GM A-Body
  • 4130N Chrome Moly
  • Bright Red

    Spohn Performance 223-4130R Features:

    Our spherical rod ended 4130N chrome moly tubular adjustable rear lower control arms for the 1964-1977 GM A-Body cars outperform the flexible, stamped steel arms and soft rubber bushings that come from the factory.
    Eliminate wheel hop and increase traction with an easy bolt on installation. The high quality spherical rod ends provide for in.bind-free in. handling and no deflection launch performance. The solid connections will increase road noise.
    The adjustability feature allows for the centering of the rear end housing fore/aft to gain proper tire clearance when running larger tires and/or for proper alignment after lowering your ride height.
    All of our spherical rod ended components come equipped with extra high strength chrome moly spherical rod ends with a Teflon self lubricating race. When shopping around for spherical rod ended components, do not shop on price alone. The lower grade rod ends (which are much cheaper) will not hold their tolerances like the premium rod ends that we utilize, this will cause substantial amounts of noise in a short amount of time.
    Fitment Note: These rear lower control arms do not have factory style rear sway bar mounting holes.

    • 1.25 in. x .095 in. wall 4130N Chrome Moly tubing
    • Stronger, yet lighter than stock
    • TIG welded 4130N chrome moly threaded tube adapters
    • 3/4 in. Chrome moly spherical rod ends with Teflon self lubricating race
    • Right hand and left hand threaded ends with integral wrench flat allows for easy on-car adjustment
    • CNC machined through sleeve and silver zinc plated steel spacers keep rod ends perfectly centered inside of the vehicle mounting brackets
    • Ships to you fully assembled and jig set at OEM length
    • Powder coated for a brilliant and durable finish
  • Part TypeControl Arm
    BrandSPOHN PERFORMANCE
    Package Height7.0
    Package Width7.5
    Package Length26.3
    Weight9.305 PG
    Part CategoryPerformance Parts
    End 2 TypeSpherical Rod End
    ConstructionTubular
    Compressed Length20.75 in.
    Rear Sway Bar MountsNo
    Bearing Type3/4" XM Series Chrome Moly Teflon Lined Spherical Rod End
    Mounting Hardware IncludedNo
    Material4130N Chrome Moly
    AdjustableYes
    Mounting Hole Diameter1/2 in.
    End 1 TypeSpherical Rod End
    Extended Length22.00 in.
    Part FitmentDirect Fit
    FinishBright Red
    Grade TypePerformance
    Oem Length22.00 in.
    Vendor Part Number223-4130R
    Package Qty1
    Package TypeEA
