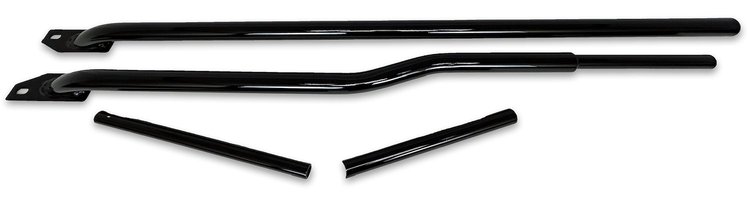

503B Tubular Subframe Connectors, 1982-1992 GM F-Body [Gloss Black]
InfoVehicle Info Needed
SPOHN PERFORMANCEPART NUMBER: 267-503B

503B Tubular Subframe Connectors, 1982-1992 GM F-Body [Gloss Black]

$28400
ShippingShips on 11/23/2026
Lowest PriceLowest Price Guarantee

Items You Need

2-Ton Low-Profile Aluminum Floor Jack [4,000 lbs. Capacity]

JEGS

2-Ton Low-Profile Aluminum Floor Jack [4,000 lbs. Capacity]

Part Number : 555-80006
$19599$269.99
You Save$74.00
6-Ton Jack Stands

JEGS

6-Ton Jack Stands

Part Number : 555-80037
$6479$89.99
You Save$25.20
Wheel Chock [Solid Rubber]

JEGS

Wheel Chock [Solid Rubber]

Part Number : 555-W41001
$1299$14.99
You Save$2.00
Penetrating Oil [11 oz. Aerosol Can]

LUCAS OIL

Penetrating Oil [11 oz. Aerosol Can]

Part Number : 639-11043
$878$9.49
You Save$0.71

GM F-Body
Weld-In Tubular Subframe Connectors
  • 1982-1992 GM F-Body
  • T-Top & Hard Top Cars
  • Gloss Black

    Spohn Performance 503B Features:

    Put an end to squeaky dashboards, cracking body panels and seriously enhance your chassis' handling and launch performance. When it comes to locking together the chassis on a 1982-1992 T-Top & Hard Top third generation GM F-Body Camaro and Firebird, nobody does it better than Spohn Performance!
    We don't consider our kit to be just a point to point sub-frame connection, we provide the components necessary to install a full frame to the underside of your uni-body vehicle.

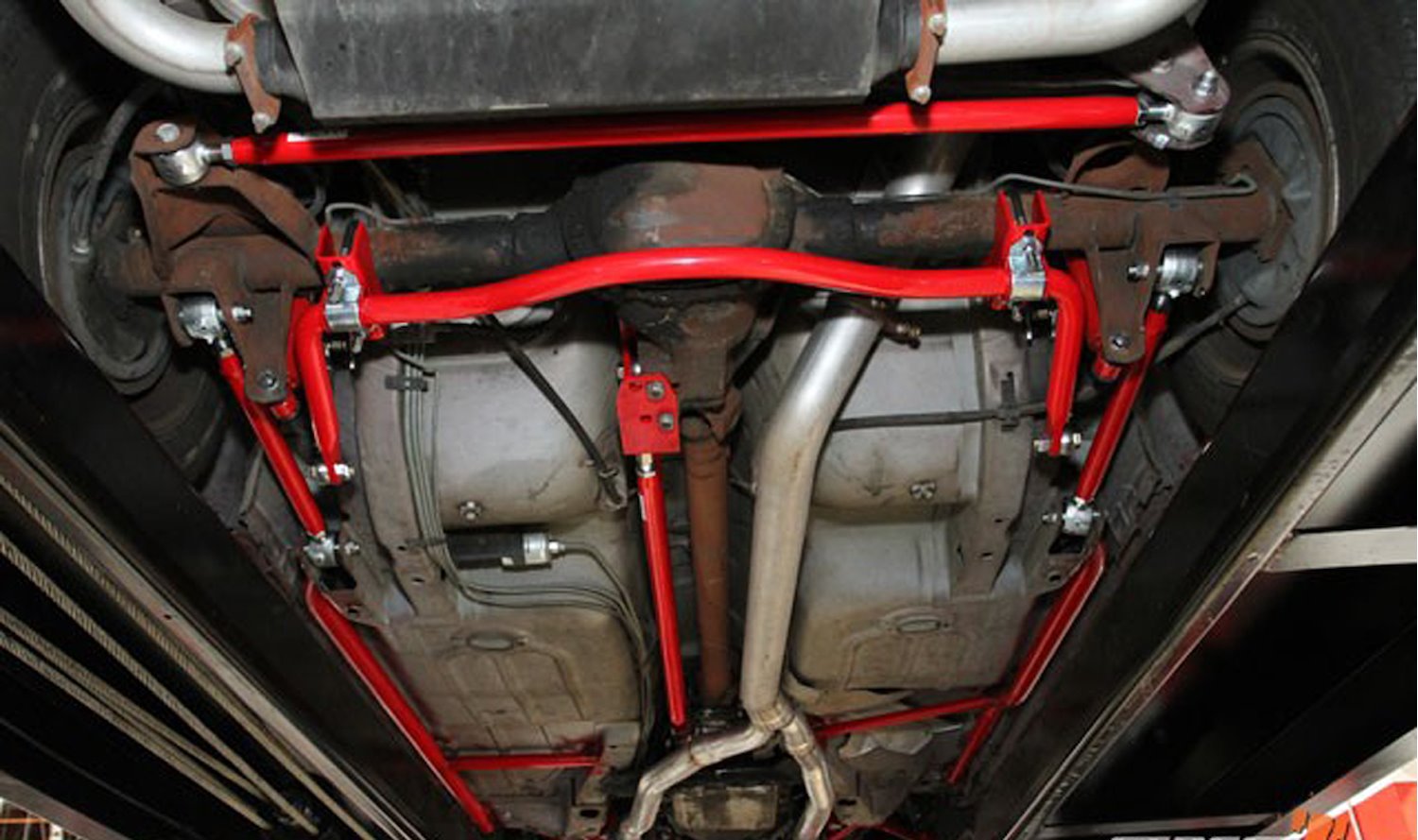

    Our in.truss-style in. framing system is constructed of 1.75 in. x 0.120 in. wall DOM tubing for serious, uncompromised rigidity. Our frame rail connects to the rear lower control arm mounting area and runs the entire length of the rocker panel ending at the rear side of the front wheel well. The main shaft is formed to fit the contour of the floor board, providing for weld contact area the entire length of the frame shaft, and no ground clearance loss.
    We don't stop there. Mid-shaft we install a in.Y in. frame that connects the main frame shaft to the beefy front sub-frame at the transmission crossmember mounting area. This provides for the ultimate in chassis stiffening by utilizing a triangulated framing design. The frame rails also provide for an excellent jacking point.
    This is a weld in system that ships to you with a brilliant and durable powder coated finish. If you've been looking for the ultimate sub-frame connection system for your 1982-1992 T-Top and Hard Top third generation GM F-Body, you just found it!
    These SFCs are designed to be used on single-cat or dual-cat y-pipe exhaust systems. The passenger's side main shaft necks down in the front to allow proper y-pipe clearance. No exhaust or floor board modifications are necessary to install our SFCs.
    Priced per Pair --- Qty. 1 = 1 Pair

    • 1.75 in. x 0.120 in. wall DOM tubing main shafts
    • Truss style framing system for serious, uncompromised rigidity
    • Clears single cat and dual cat y-pipes
    • No exhaust or floor board modifications are necessary. Welding is required.
    • Powder coated for a brilliant and durable finish
    • Improve Chassis Rigidity

      Spohn Performance Subframe Connectors are the ultimate solution for reinforcing your chassis. Enhance handling, improve launch performance, and eliminate unwanted body squeaks with superior rigidity. By seamlessly linking the front and rear of your vehicle, you achieve unmatched structural strength.

    Part TypeSubframe Connector
    Product LineSpohn Perfomance Subframe Connectors
    BrandSPOHN PERFORMANCE
    Package Height3.0
    Package Width6.0
    Package Length66.0
    Weight28.0 PG
    Part CategoryPerformance Parts
    Mount TypeWeld In
    MaterialMild Steel
    Part FitmentDirect Fit
    FinishGloss Black
    Grade TypePerformance
    Vendor Part Number503B
    Package Qty1
    Package TypeEA
