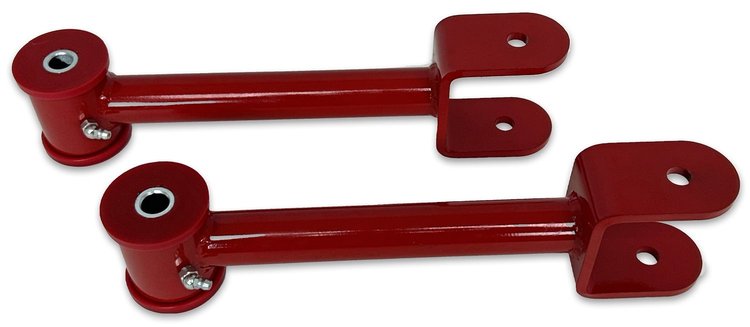

631R Rear Upper Control Arms w/ Polyurethane Bushings, 1971-1996 GM B-Body [Red]
InfoVehicle Info Needed
SPOHN PERFORMANCEPART NUMBER: 267-631R

631R Rear Upper Control Arms w/ Polyurethane Bushings, 1971-1996 GM B-Body [Red]

$13900
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Items You Need

2-Ton Low-Profile Aluminum Floor Jack [4,000 lbs. Capacity]

JEGS

2-Ton Low-Profile Aluminum Floor Jack [4,000 lbs. Capacity]

Part Number : 555-80006
$24499$269.99
You Save$25.00
6-Ton Jack Stands

JEGS

6-Ton Jack Stands

Part Number : 555-80037
$8099$89.99
You Save$9.00
Timken Wheel Bearing Grease 14oz Cartridge Standard

ALLSTAR PERFORMANCE

Timken Wheel Bearing Grease 14oz Cartridge Standard

Part Number : 049-ALL78240
$799
Penetrating Oil [11 oz. Aerosol Can]

LUCAS OIL

Penetrating Oil [11 oz. Aerosol Can]

Part Number : 639-11043
$878$9.49
You Save$0.71

GM B-Body
Tubular Rear Upper Control Arms w/ Polyurethane Bushings
  • 1971-1996 GM B-Body
  • Bright Red

    Spohn Performance 631R Features:

    Our tubular rear upper control arms for the 1971-1996 GM B-Body cars outperform the flexible, stamped steel arms and soft rubber bushings that come from the factory.
    Eliminate wheel hop and increase traction with an easy bolt on installation. All ends are fitted with grease fittings for easy lubrication of the fluted polyurethane bushings.
    Our tubular rear UCAs are constructed from 1.25 in. x 0.095 in. wall DOM tubing with CNC laser cut and formed 1/4 in. thick steel mounting brackets and are 100% TIG welded to handle the most severe abuse.
    Powder coated for a brilliant and durable finish.
    Priced per Pair -- Qty. 1 = 1 Pair

    • 1.25 in. x 0.095 in. wall DOM tubing
    • CNC laser cut and formed 1/4 in. thick steel mounting brackets
    • Polyurethane bushings (fluted) with grease fittings for easy lubrication
    • Powder coated for a brilliant and durable finish

      • Your Choice for Best-Performing Tubular Control Arms

      Spohn Performance Tubular Control Arms and Components redefine performance and quality, setting a higher standard. Engineered from aerospace-level technology and design tools, these control arms deliver exceptional handling, responsiveness, weight savings, strength, and durability for daily driving or track days. Upgrade your outdated OE factory control arms and hardware for a remarkable blend of precision performance and superior ride comfort. Available in front and rear, upper and lower applications.

    Part TypeControl Arm
    Product LineSpohn Performance Tubular Control Arms and Components
    BrandSPOHN PERFORMANCE
    Package Height6.0
    Package Width6.0
    Package Length26.0
    Weight8.0 PG
    Part CategoryPerformance Parts
    U-Bracket Mounting Hole Diameter12 mm
    Grease Fitting IncludedYes
    End 2 TypeBushing
    Pre-GreasedYes
    ConstructionTubular
    Bushing FinishRed
    Bushing Mounting Hole Diameter14 mm
    Bushing MaterialPolyurethane
    Mounting Hardware IncludedNo
    MaterialMild Steel
    AdjustableNo
    GreaseableYes
    End 1 TypeU-Bracket
    Part FitmentDirect Fit
    FinishBright Red
    Bushings IncludedYes
    Rear Housing Bushings IncludedNo
    Vendor Part Number631R
    Package Qty1
    Package TypeEA
    Please click here to download the instructions PDF file
