654-6770B Adjustable Rear Upper Control Arm w/ Poly Bushings, 67-70 GM B-Body [Black]
InfoVehicle Info Needed
SPOHN PERFORMANCEPART NUMBER: 267-654-6770B

654-6770B Adjustable Rear Upper Control Arm w/ Poly Bushings, 67-70 GM B-Body [Black]

$11900
2 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

GM B-Body

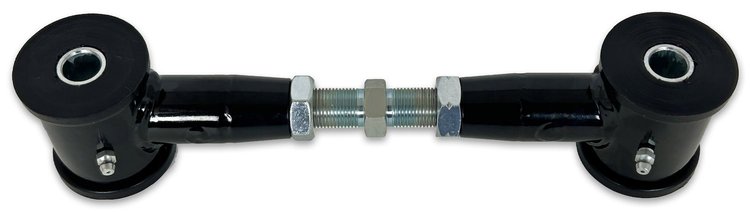

Tubular Adjustable Rear Upper Control Arm w/ Polyurethane Bushings
  • 1967-1970 GM B-Body
  • Gloss Black

    Spohn Performance 654-6770B Features:

    Replace the factory's weak and flexible rubber bushed rear upper control arm on your 1967-1970 GM B-Body Impala, Caprice, Biscayne, Bel Air, etc. with our heavy duty adjustable tubular unit!
    Our tubular adjustable rear upper control arm allows you to set your pinion angle and provides for serious handling performance and greatly increases the rear end's fore and aft stability.
    After more than 55 years of use the factory rear upper control arm is corroded and the rubber bushings are cracked and dry rotted which adversely effects the performance of your car.
    Improve your ride quality, reduce body roll, eliminate wheel hop, and increase traction with an easy bolt on installation.
    All ends are fitted with grease fittings for easy lubrication of the fluted polyurethane bushings. Powder coated for a brilliant and durable finish.
    Priced per Arm -- Qty. 1 = 1 Arm: You will need to verify whether your car has one or two rear upper control arms. All six cylinder and most small block cars were equipped with one rear upper control arm. Big block cars were equipped with two rear upper control arms.
    Fitment Note: Fits 1967-1970 GM B-Body cars only.

    • 1.25 in. x 0.120 in. wall DOM tubing
    • Stronger, yet lighter than stock
    • Polyurethane bushings (fluted) with grease fittings for easy lubrication
    • TIG welded 4130N chrome moly threaded tube adapters

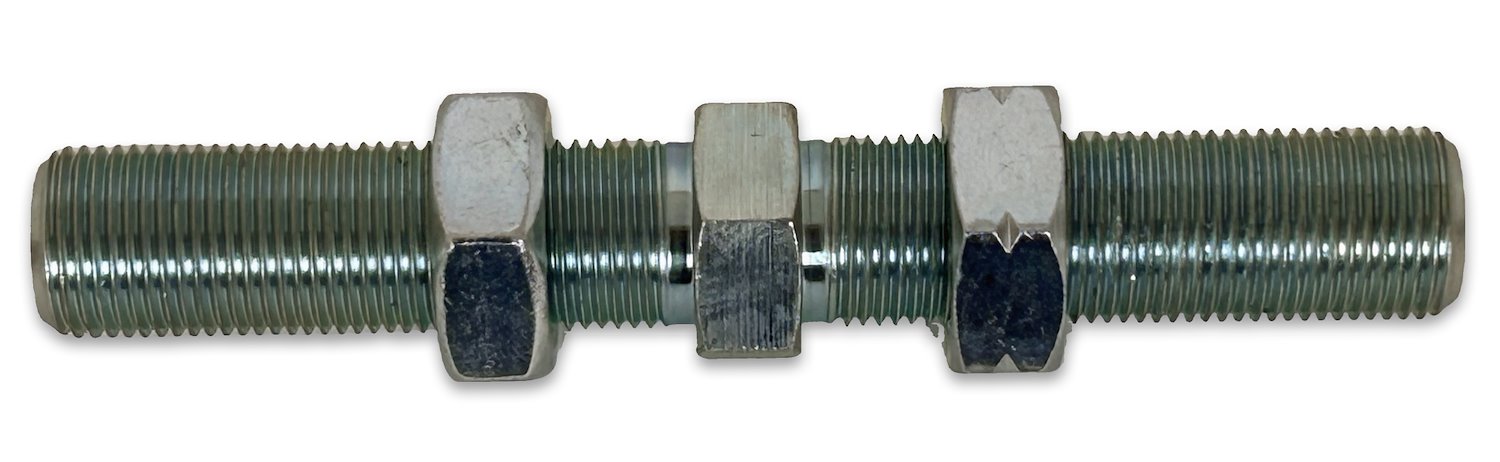

    • Right hand and left hand threaded CNC machined 4140 chrome moly double male adjuster allows for easy on-car adjustment
    • This is the highest quality, easiest to adjust on the car rear upper control arm on the market!
    • Ships to you fully assembled and jig set at OEM length
    • Powder coated for a brilliant and durable finish
  • Part TypeControl Arm
    BrandSPOHN PERFORMANCE
    Package Height4.3
    Package Width4.7
    Package Length18.5
    Weight3.78 PG
    Part CategoryPerformance Parts
    Grease Fitting IncludedYes
    End 2 TypeBushing
    Pre-GreasedYes
    ConstructionTubular
    Bushing FinishBlack
    Compressed Length8.375
    Bushing MaterialPolyurethane
    Mounting Hardware IncludedNo
    MaterialMild Steel
    AdjustableYes
    Mounting Hole Diameter5/8 in.
    GreaseableYes
    End 1 TypeBushing
    Extended Length10.5
    Part FitmentDirect Fit
    FinishGloss Black
    Bushings IncludedYes
    Oem Length10
    Vendor Part Number654-6770B
    Package Qty1
    Package TypeEA
