Made in USA

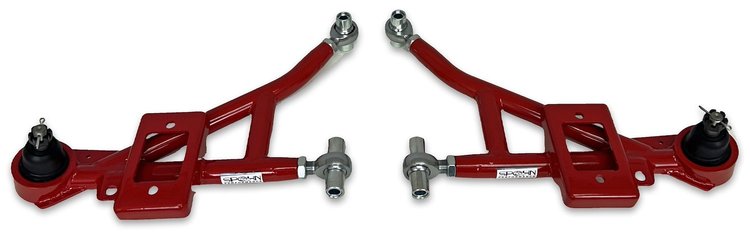

741R Tubular Front Lower A-Arms w/ Rod Ends, 1993-2002 GM F-Body [Bright Red]
InfoVehicle Info Needed
SPOHN PERFORMANCEPART NUMBER: 267-741R

741R Tubular Front Lower A-Arms w/ Rod Ends, 1993-2002 GM F-Body [Bright Red]

$49900
3 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

GM F-Body
Tubular Front Lower Control A-Arms w/ Spherical Rod Ends
  • 1993-2002 GM F-Body
  • Bright Red

    Spohn Performance 741R Features:

    Spohn Performance's tubular front lower control a-arms for the 1993-2002 GM F-Body Camaro & Firebird set a new, higher standard of performance and quality. When we designed our front lower a-arms, we had two goals in mind.
    One was to provide the performance capabilities needed for the toughest race tracks, the second was to provide the strength and durability required for the demands of a daily driven vehicle. We're proud to say that we have accomplished both.
    Spohn front lower a-arms are a true in.A in. arm rather than a in.V in. arm. This provides maximum rigidity and equalizes forces delivered in to the k-member. Spohn front lower control arms are gusseted in critical areas to ensure that a weld never breaks.
    The Spohn front lower control a-arms can be installed on a factory k-member, or on aftermarket k-members. They decrease overall weight, and more importantly, in.unsprung in. weight.
    These feature 3/4 in. chrome moly spherical rod ends with a Teflon self lubricating race for smooth rotation, resulting in increased rigidity and a precise steering feel, as well as additional alignment adjustability.
    They include premium greaseable ball joints already installed and ship fully assembled ready to bolt right into your car. They are powder coated for a brilliant and durable finish.
    Priced per Pair -- Qty. 1 = 1 Pair

    • 1.25 in. x 0.120 in. wall DOM tubing
    • CNC laser cut and formed fully boxed 3/16 in. thick steel front shock mounts for maximum strength
    • 3/4 in. chrome moly spherical rod ends with Teflon self lubricating race allow for additional alignment adjustability
    • Powder coated for a brilliant and durable finish
    • Stronger, yet lighter than stock

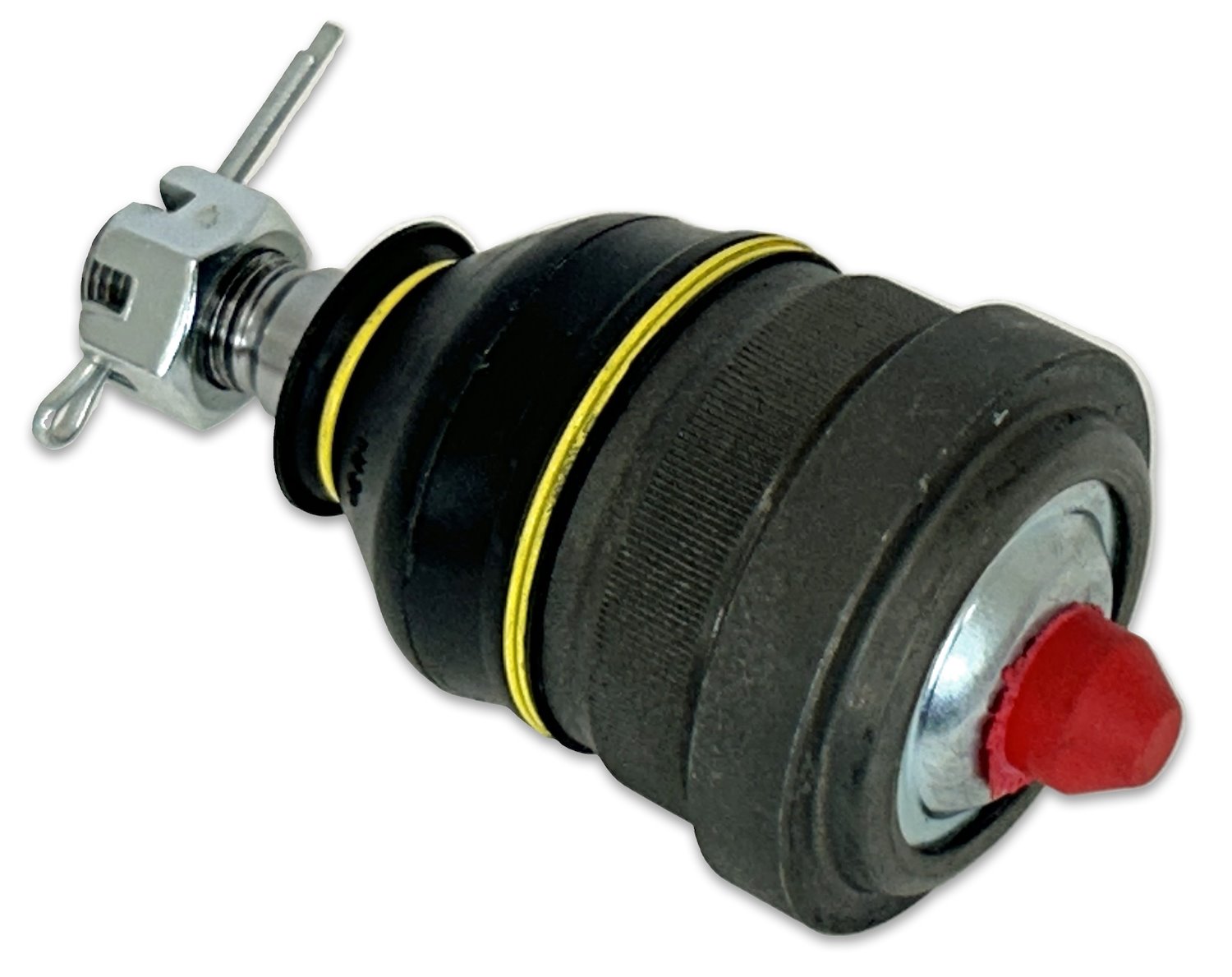

    • Premium greaseable ball joints included
    • Ball joint cups are CNC machined from 2.75 in. o.d. x .375 in. wall DOM tubing and fully gusseted
    • TIG welded 4130 chrome moly threaded tube adapters
    • Grade 8 shock mounting hardware included
    • Ship fully assembled and ready to install
  • Part TypeControl Arm
    BrandSPOHN PERFORMANCE
    Package Height8.7
    Package Width12.6
    Package Length24.1
    Weight22.59 PG
    Part CategoryPerformance Parts
    Mounting Hole Diameter14 mm
    ConstructionTubular
    Shock Mounting Hardware IncludedYes
    Mounting Hardware IncludedNo
    Ball Joints IncludedYes
    MaterialMild Steel
    Part FitmentDirect Fit
    Mounting TypeSpherical Rod Ends
    FinishBright Red
    AdjustableYes
    Vendor Part Number741R
    Package Qty1
    Package TypeEA
