Spohn Performance 743-DSR Features:

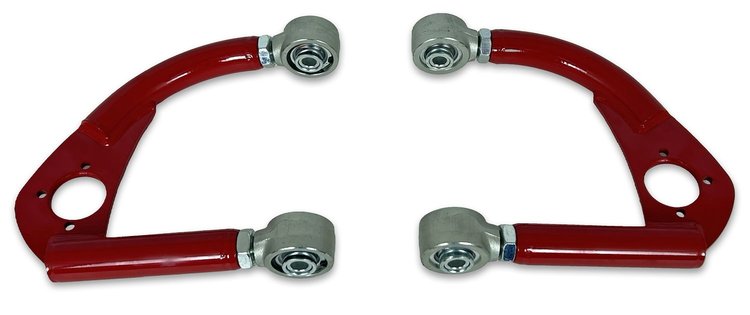

Spohn Performance's adjustable tubular front upper control a-arms for the 1993-2002 GM F-Body Camaro & Firebird set a new, higher standard of performance and quality. When we designed our upper a-arms, we had two goals in mind.
One was to provide the performance capabilities needed for the toughest race tracks, the second was to provide the strength and durability required for the demands of a daily driven vehicle. We're proud to say that we have accomplished both.
These feature 3/4 in. Del-Sphere pivot joints for smooth rotation, resulting in increased rigidity and a precise steering feel. The threaded pivot joints allow for additional alignment adjustability.
This package does not include any ball joints for those who already have ball joints or want to use a certain brand and/or style of ball joint. You may also re-use the factory ball joints by cutting off the rivets and then bolting the ball joints to these a-arms. Use our SKU 986 bolt kit.
Powder coated for a brilliant and durable finish.
Priced per Pair -- Qty. 1 = 1 Pair
Del-Sphere Pivot Joints:

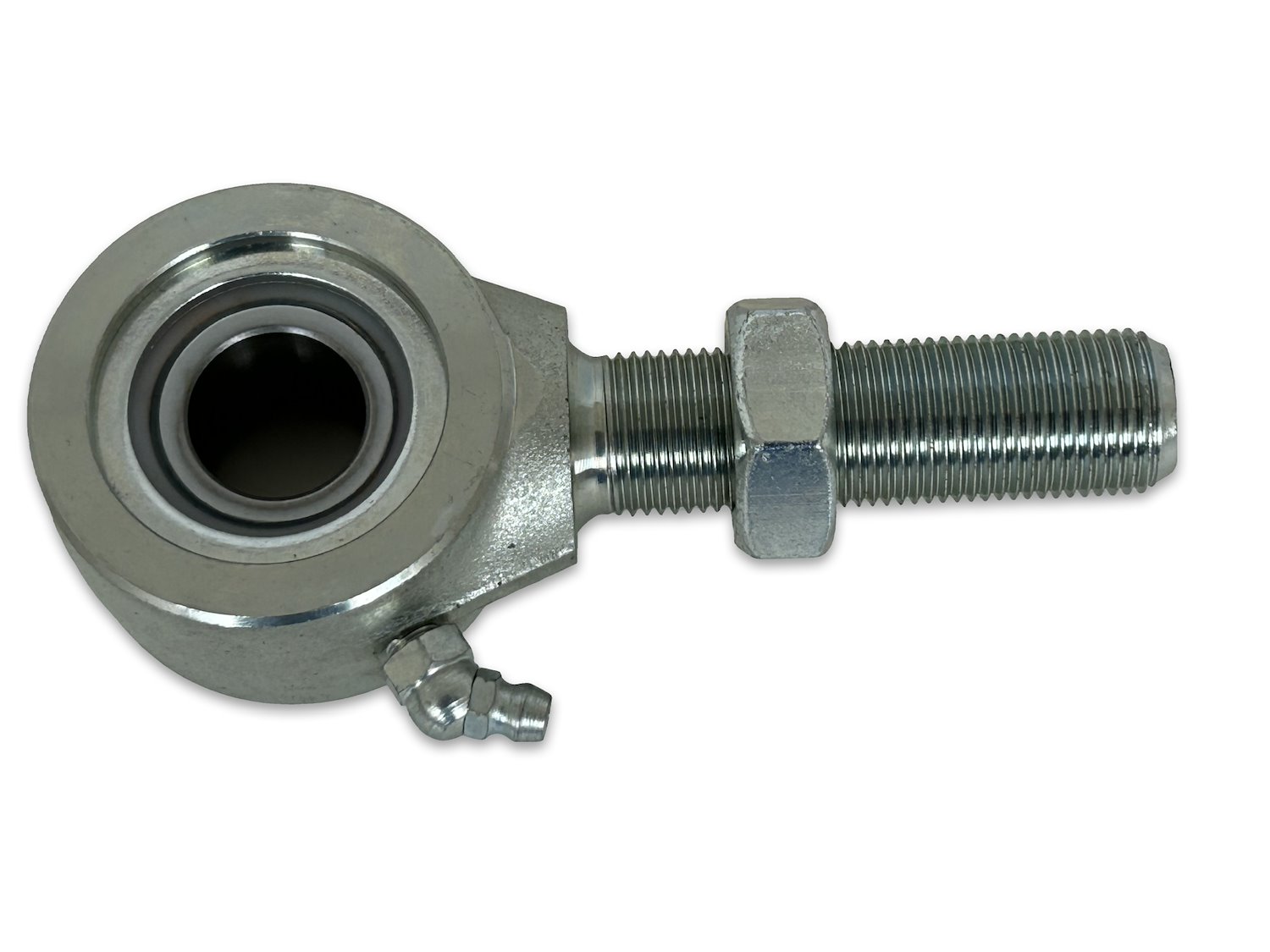

The Spohn Performance Del-Sphere pivot joint solves the shortcomings of the factory rubber and aftermarket polyurethane bushings. Our Del-Sphere pivot joint incorporates a spherical ball which is surrounded by Delrin® bushing cups.
Think of the Del-Sphere pivot joint as a Delrin® bushed spherical rod end. The Delrin® bushing cups absorb shock and road noise so you get the quiet and smooth ride of a bushing as well as 22° of rotation! Unlike a spherical rod end, the Del-Sphere pivot joint is 100% rebuildable.
Designed and manufactured exclusively by Spohn Performance, we have taken street suspension performance to the next level.

• 1.25 in. x 0.120 in. wall DOM tubing
• CNC laser cut and machined 1/4 in. thick steel ball joint mounting plate with -3º improved ball joint angle for lowered ride height
• 3/4 in. Del-Sphere pivot joints allow for additional alignment adjustability
• Powder coated for a brilliant and durable finish
• No ball joints are included
• Ship fully assembled and ready to install
