Vehicle Info Needed973-980S Front Lower & Upper Control A-Arms Mounting Hardware, 1982-2004 GM S-10 (2WD)
Ships on 09/09/2026
Lowest Price GuaranteeSpohn Performance 973-980S Features:

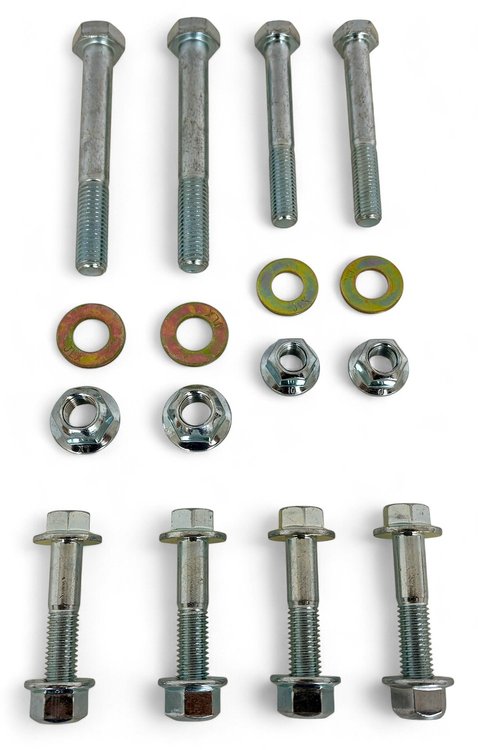

Don't use your old rusty mounting bolts when installing aftermarket or stock front lower and upper control a-arms on your 1982-2004 (2WD) GM S-10 & S-15 (if you managed to get the nuts off without breaking the bolts!).Our front lower and upper a-arms mounting hardware kit includes:(6) 12 mm Grade 10.9 bolts (zinc plated)(2) 14 mm Grade 10.9 bolts (zinc plated)(6) 12 mm flanged head steel lock nuts (zinc plated)(2) 14 mm flanged head steel lock nuts (zinc plated)(2) 12 mm flat washers (zinc plated)(2) 14 mm flat washers (zinc plated)
- (6) 12 mm Grade 10.9 bolts (zinc plated)
- (6) 12 mm Flanged head steel lock nuts (zinc plated)
- (2) 12 mm Grade 8 flat washers (zinc plated)
- (2) 14 mm Grade 10.9 bolts (zinc plated)
- (2) 14 mm Flanged head steel lock nuts (zinc plated)
- (2) 14 mm Grade 8 flat washers (zinc plated)
- 12 mm Bolt Finish: Zinc Plated
- 12 mm Bolt Grade: 10.9
- 12 mm Bolt Hex Size: 19 mm
- 12 mm Bolt Quantity: Six (6)
- 12 mm Bolt Type: Hex Head
- 12 mm Nut Finish: Zinc Plated
- 12 mm Nut Hex Size: 18 mm
- 12 mm Nut Quantity: Six (6)
- 12 mm Nut Thread Pitch: 1.75 mm
- 12 mm Nut Type: Flanged Head Steel Locking
- 12 mm Washer Finish: Zinc Plated
- 12 mm Washer Grade: 8
- 12 mm Washer Quantity: Two (2)
- 12 mm Washer Type: Flat
- 14 mm Bolt Finish: Zinc Plated
- 14 mm Bolt Grade: 10.9
- 14 mm Bolt Hex Size: 22 mm
- 14 mm Bolt Quantity: Two (2)
- 14 mm Bolt Type: Hex Head
- 14 mm Nut Finish: Zinc Plated
- 14 mm Nut Hex Size: 21 mm
- 14 mm Nut Quantity: Two (2)
- 14 mm Nut Type: Flanged Head Steel Locking
- 14 mm Thread Pitch: 2.00 mm
- 14 mm Washer Finish: Zinc Plated
- 14 mm Washer Grade: 8
- 14 mm Washer Quantity: Two (2)
- 14 mm Washer Type: Flat
Your Choice for Best-Performing Tubular Control Arms
Spohn Performance Tubular Control Arms and Components redefine performance and quality, setting a higher standard. Engineered from aerospace-level technology and design tools, these control arms deliver exceptional handling, responsiveness, weight savings, strength, and durability for daily driving or track days. Upgrade your outdated OE factory control arms and hardware for a remarkable blend of precision performance and superior ride comfort. Available in front and rear, upper and lower applications.
