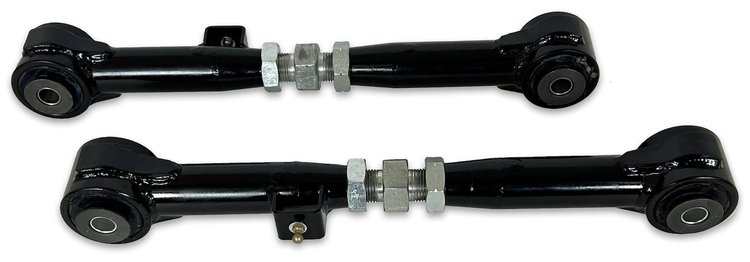

Spohn Performance D09-1500-609B Features:

Replace the factory rear upper control arms on your 2009+ Dodge Ram 1500 truck with our extreme duty adjustable units!

Our tubular adjustable rear upper control arms are built to take a beating, provide for serious handling performance, and greatly increase the rear end's fore and aft stability.

Eliminate wheel hop, increase traction, and correct rear end alignment after lowering or lifting the ride height with an easy bolt-on installation.

The adjustability feature allows for pushing the rear axle housing back to correct rear end fore/aft centering after lowering or lifting the ride height (if used in conjunction with our SKU D09-1500-209 adjustable rear lower control arms).

The adjustability feature also allows for pinion angle adjustment for those looking for drag strip performance and/or pinion angle corrections after lowering or lifting the ride height.

Our massive forged 4130 chrome moly 1"-12 right hand and left hand threaded CNC machined double male adjusters allow for easy on-the-truck adjustments, there's no need to unmount the control arms to make adjustments!

These control arms feature our 100% maintenance-free Vulcan Series™ extreme-duty vulcanized natural rubber bushings that provide for a ride as smooth and quiet as factory, as well as long term durability.

Priced per Pair -- Qty. 1 = 1 Pair

• 1.50" x 0.120" wall DOM tubing
• 2.50" x 0.25" wall DOM bushing housing tubes
• CNC laser cut and formed 3/16" thick steel bushing housing gussets top and bottom for maximum strength and durability
• Vulcan Series™ extreme-duty vulcanized natural rubber bushings

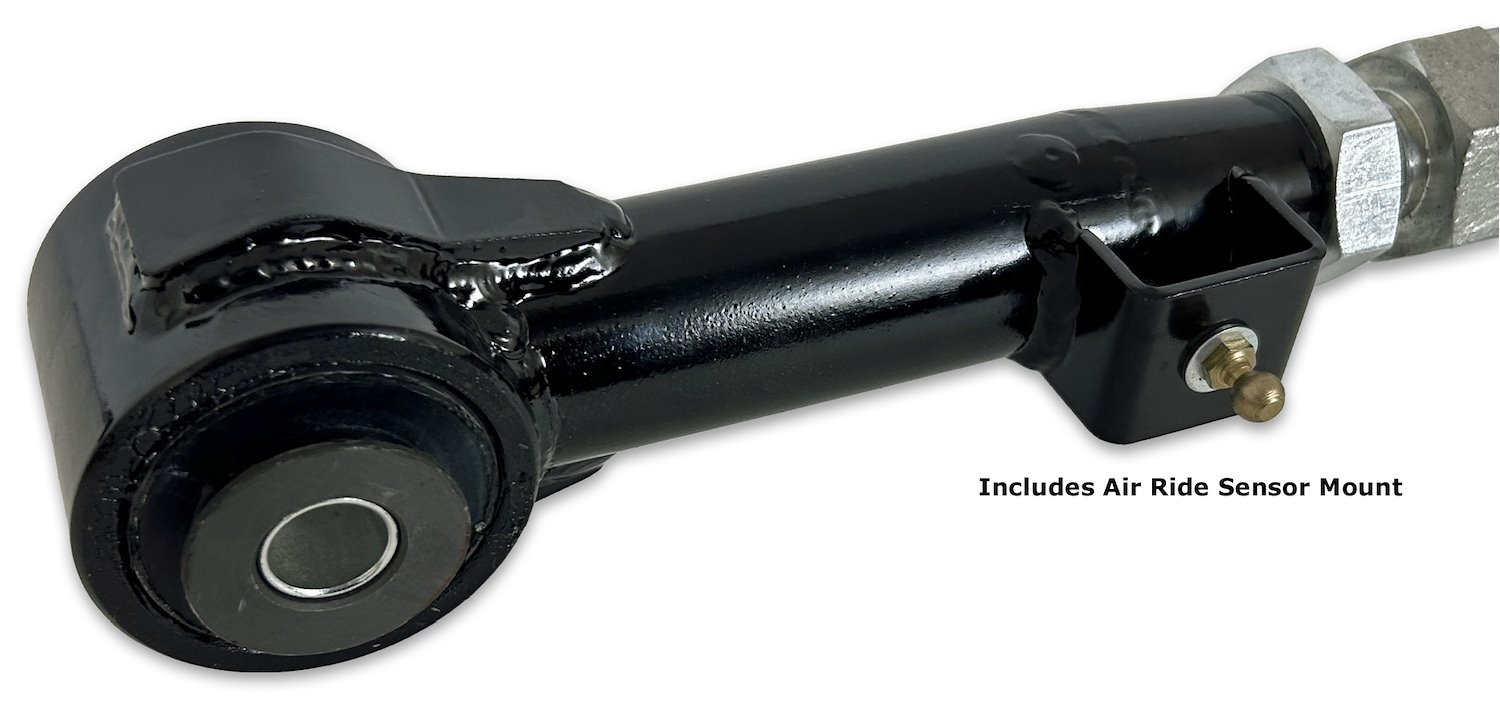

• Includes CNC laser cut and formed sensor mounts with ball studs for trucks equipped with factory Active-Level™ Air Suspension
• Massive 1"-12 right hand and left hand threaded silver zinc plated forged 4130 chrome moly double male adjusters
• TIG welded 4130 chrome moly threaded tube adapters for maximum thread strength
• Ships fully assembled and jig set at OEM length. Center-Center Lengths - OEM: 16.375" - Compressed: 15.375" - Extended: 17.25"
• These are the highest quality, easiest to adjust on-the-truck rear upper control arms on the market!
• Easy 100% bolt-in installation using factory hardware with the use of basic hand tools
• Powder coated for a brilliant and durable finish
• Color: Black
• Mounting Hardware Included: No
• Adjustable: Yes
• Bushing Material: Rubber
• Bushing Color: Black
• Construction: Tubular
• Finish: Powder Coated
• Bushings Included: Yes
• Control Arm Material: Steel
• Grade Type: Performance
• Compressed Length: 15.375
• End 1 Type: Bushing
• End 2 Type: Bushing
• Extended Length: 17.250
• Mounting Hole Diameter: 16
• OEM Length: 16.375
