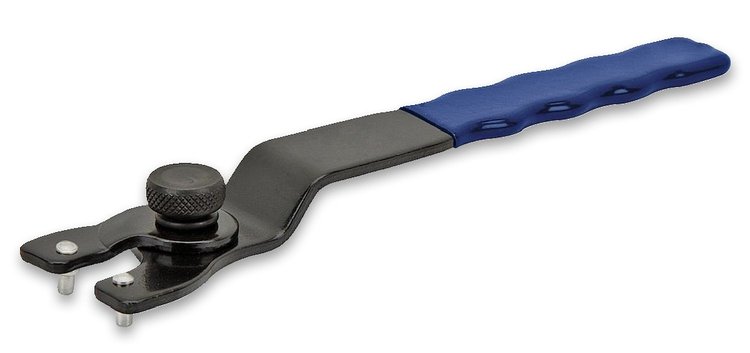

Spohn Performance PW-1 Features:

This Del-Sphere pivot joint adjustable pin spanner wrench will allow you to do two things. First, you can disassemble the Del-Sphere pivot joint for cleaning, inspection, etc. Second, you can adjust the amount of friction on the spherical ball.

Do you want a very low friction pivot joint or a very tight pivot joint? It's up to you, the amount of tension can be easily adjusted by using our adjustable pin spanner wrench to tighten or loosen the end retainer ring.

What that also means is when over time and miles the tolerances open up you can simply re-adjust the retainer ring and have your pivot joint as tight as it was the day it was brand new.

This adjustable pin spanner wrench allows you to adjust your Del-Sphere pivot joint while still mounted on the vehicle. That is the advantage to this adjustable pin spanner wrench compared to our SKU DS34-W 1/2 in. drive adjustment tool.

No matter how many Del-Sphere pivot joints you have you'll only need one adjustable pin spanner wrench to handle all of your adjustment needs.

Fits these 3/4 in. Del-Sphere pivot joint SKUs: DS34LH, DS34RH & DS34B-250.

Specifications:

The easy twist knob adjustment on this adjustable pin wrench lets you adjust from as narrow as 3/8 in. c-c to as wide as 1-1/16 in. c-c. It features a cushioned handle for a comfortable and controlled grip, and with an overall length of 7.5 in. there is plenty of leverage. The two (2) pins are 0.150 in. diameter x 3/16 in. long.

• Fits 3/4 in. Del-Sphere pivot joints (DS34LH, DS34RH & DS34B-250)
• Allows for Del-Sphere pivot joint adjustment while still mounted on the vehicle
• 7.5 in. overall length with a cushioned handle for plenty of leverage
• Easy twist knob adjustment lets you adjust from as narrow as 3/8 in. c-c to as wide as 1-1/16 in. c-c
• The two (2) pins are 0.150 in. diameter x 3/16 in. long
• Wrench Adjustable: Yes
• Wrench Fitment: 3/4 in. Del-Sphere Pivot Joints (DS34LH, DS34RH & DS34B-250)
• Wrench Handle Type: Cushioned
• Wrench Material: Steel
• Wrench Maximum Width: 1-1/16
• Wrench Minimum Width: 3/8
• Wrench Overall Length: 7.5
• Wrench Pin Diameter: 0.150
• Wrench Pin Length: 3/16
• Wrench Style: 2 Pin
