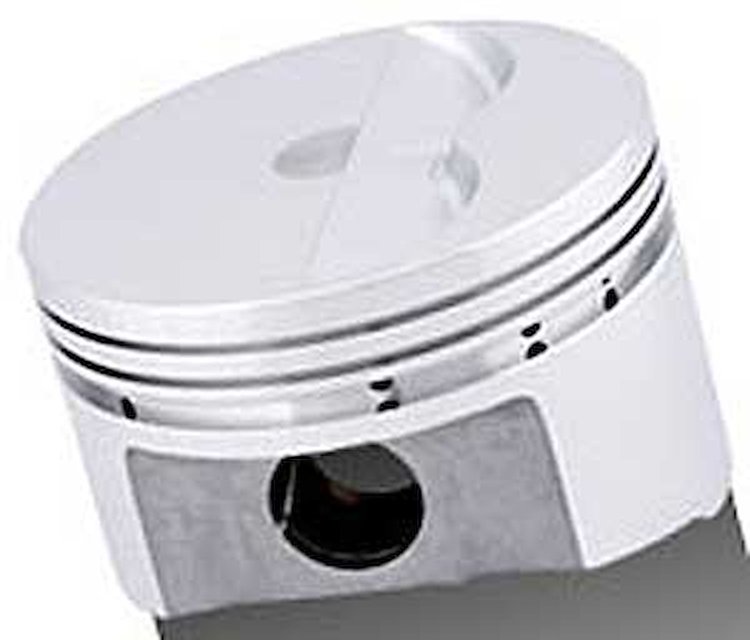

Flat Top Forged Pistons Bore: 4.030"
InfoVehicle Info Needed
SRPPART NUMBER: 867-138089

Flat Top Forged Pistons Bore: 4.030"

$65699
ShippingShips on Nov 24, 2026
Lowest PriceLowest Price Guarantee

Items You Need

Break-In/Engine Oil Supplement [12 oz. Bottle]

JEGS

Break-In/Engine Oil Supplement [12 oz. Bottle]

Part Number : 555-28060
$1009$11.99
You Save$1.90
32-Blade Feeler Gauge Kit 0.0015" to 0.035" (0.038mm to 0.889mm)

JEGS

32-Blade Feeler Gauge Kit 0.0015" to 0.035" (0.038mm to 0.889mm)

Part Number : 555-80500
$999$10.99
You Save$1.00

Chevy 350
  • Rod: 5.700 in.
  • Stroke: 3.750 in.
    • Flat Top Forged Pistons
    • Bore: 4.030"
    • 8/pkg

      Compression Ratios
    • 58cc: 11.8 to 1
    • 64cc: 11.0 to 1
    • 70cc: 10.3 to 1
    • 76cc: 9.7 to 1

    Ideal for Street/Strip and Racing Machine

    SRP Small Block Chevy Flat Top Forged Pistons are manufactured from a high-silicon 4032 aluminum alloy for great clearance qualities and quiet operation.

    Features

    • Dome Volume: -5cc
    • Ring Grooves: 1/16", 1/16", 3/16"
    Show More
    • Ideal for street/strip and oval track (will work on small nitrous systems)
    • Symmetrical valve reliefs for universal installation
    • High-silicon alloy for tighter piston-to-wall clearance
    • Straight Wall Carbon Steel Wristpin: .927" x 2.75" x .150" (130 grams)
    Part TypePiston
    Product LineSRP Small Block Chevy Flat Top Forged Pistons
    BrandSRP
    Package Height5.8
    Package Width11.4
    Package Length25.2
    Weight14.21 PG
    Part CategoryPerformance Parts
    Piston Head Volume (Cc)5
    Compression Distance1.425 in (36.195 mm)
    Piston Ring Thickness (In.)1/16 x 1/16 x 3/16
    Wrist Pin StylePress-fit or floating
    QuantitySold as a set of 8
    Piston MaterialForged aluminum
    Pin Diameter0.927 in (23.5 mm)
    Part FitmentSemi Universal
    Bore (Mm)102.362
    Piston StyleFlat top, with two valve reliefs
    Bore4.03 in (102.362 mm)
    Vendor Part Number138089
    Package Qty1
    Package TypeEA
